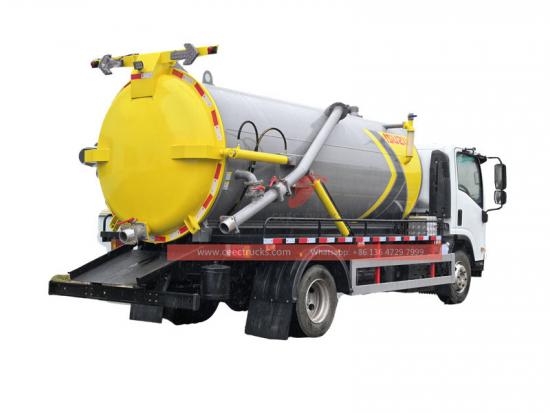

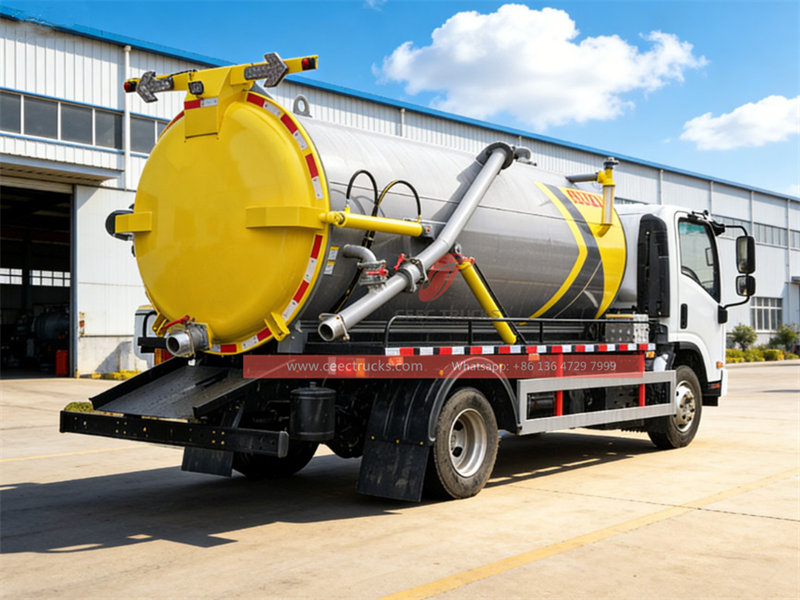

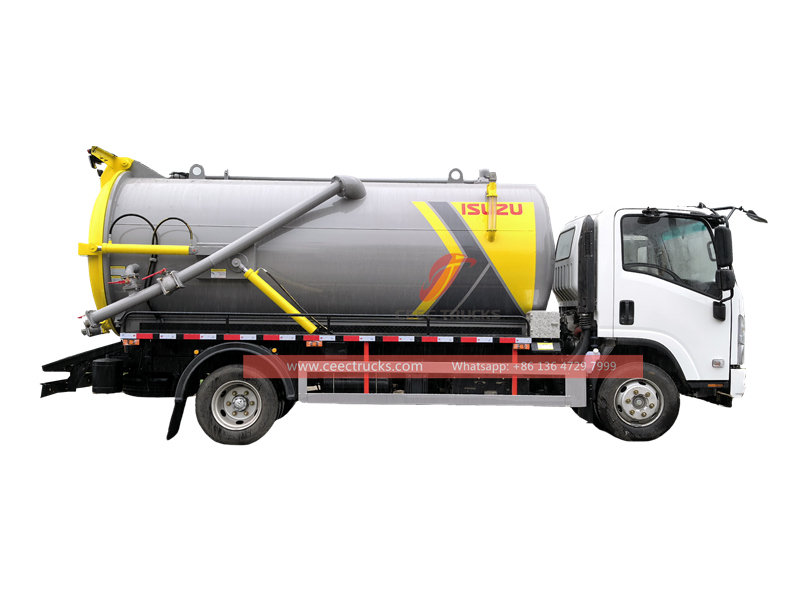

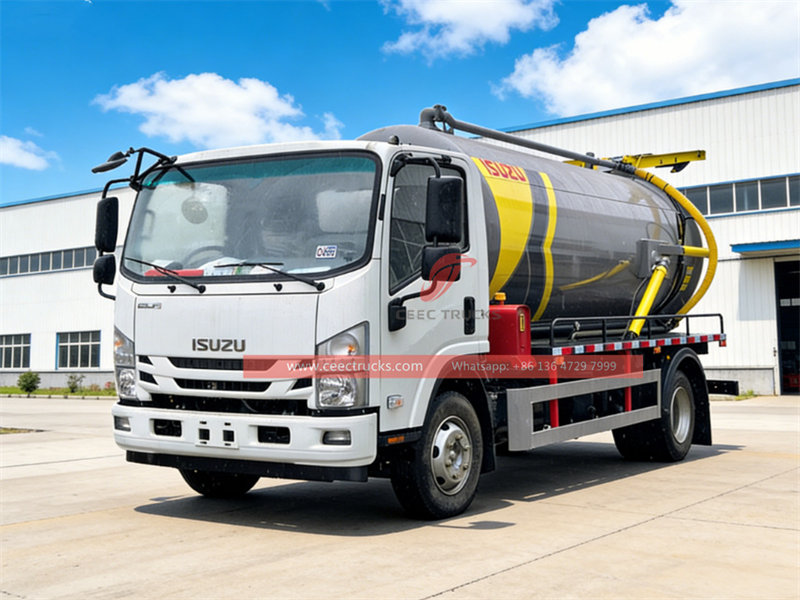

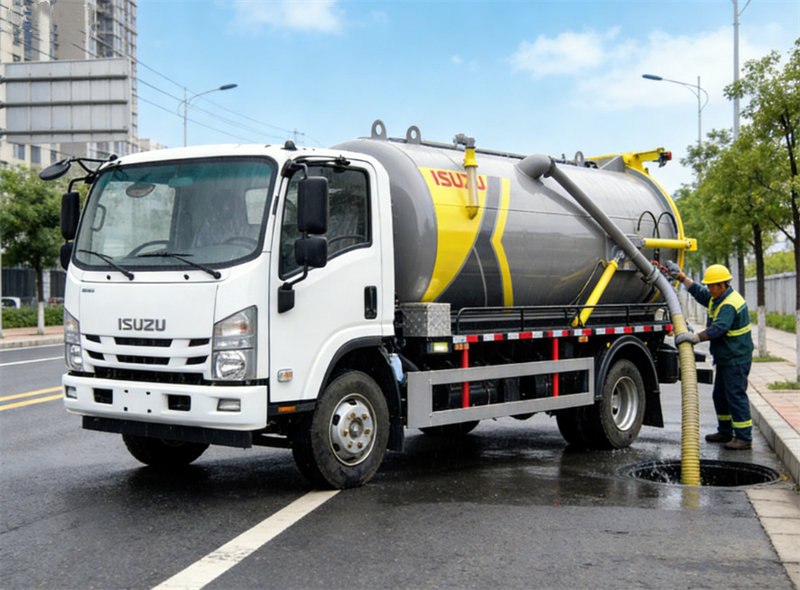

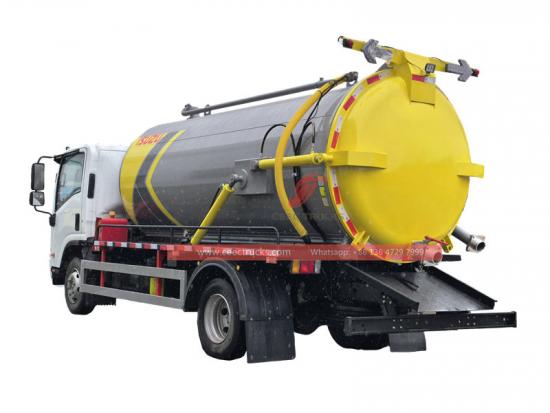

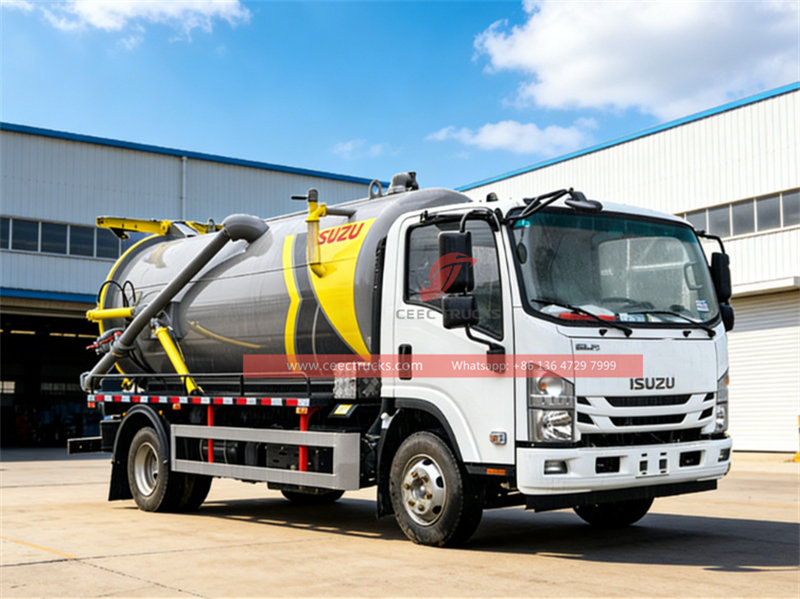

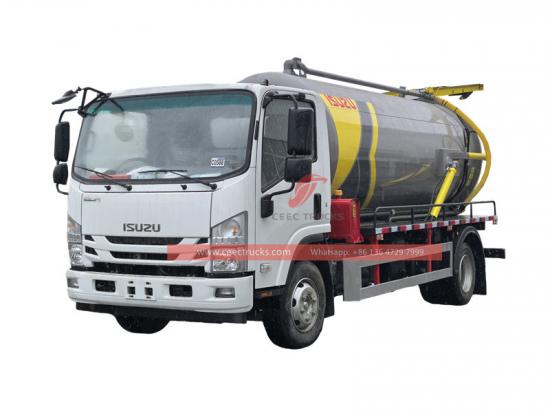

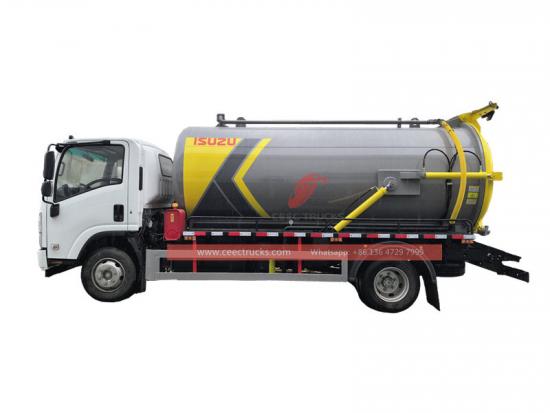

Dans le domaine de l'assainissement municipal, Isuzu light duty 8 000L s ewage tank truck has become an industry benchmark with its excellent performance and multifunctional design. Equipped with a high quality 4HK1 engine with a maximum horsepower of 190 HP, and a powerful vacuum suction system, it can quickly dredge sewers, septic tanks and other complex scenes. The tank volume is up to 8CBM , and the operating efficiency is extremely high. It adopts a modular design and supports optional front reels, liquid level gauges and sprinklers to meet diverse needs.
Paiement:
T/T, West UnionPrix du marché:
$29800Origine du produit:
China CEECPort d\'expédition:
China main portDélai de mise en œuvre:
45 DaysCapacité de travail:
8000LDimensions ( mm ):
7300*2530*2950 mmEmpattement ( mm ):
3815 mmPuissance du moteur:
190 HPType de moteur:
4HK1-TCG61Transmission par essieu:
4x2boîte de vitesses:
MLD gearbox, manual, 6 gears forwards with 1 reverseRemarques:
Jurop pump, Moro pump 4×4, RHD drive is optionalDans le domaine de l'assainissement municipal, Isuzu light duty 8 000L s ewage tank truck has become an industry benchmark with its excellent performance and multifunctional design. Equipped with a high quality 4HK1 engine with a maximum horsepower of 190 HP, and a powerful vacuum suction system, it can quickly dredge sewers, septic tanks and other complex scenes. The tank volume is up to 8CBM , and the operating efficiency is extremely high. It adopts a modular design and supports optional front reels, liquid level gauges and sprinklers to meet diverse needs.
Manufacturer: CEEC TRUCKS GROUP
Product Features:
☛ Isuzu light 4x2 chassis with stronger power 4HK1 190HP engine.
☛ Suctioning,displacing(option),transporting and discharging dry,wet and hazardous substances, such as sluge sand,(roof) gravel, fly ash, powders and various types of liquids.
☛ The powerful tri-lobe blower gives the vacuum tanker with cyclone separator a very high suction and displacement capacity.
☛ Self-cleaning cyclone separation keeps the cyclones dust free at all times.
|

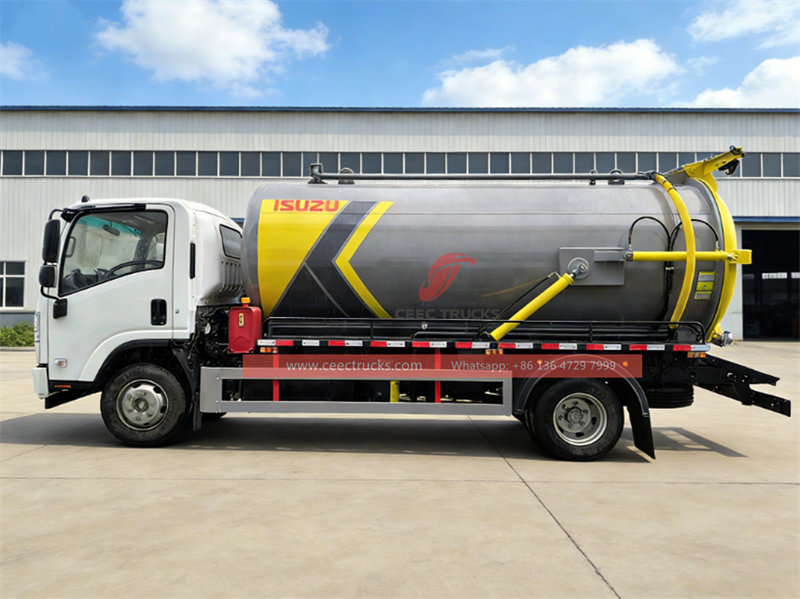

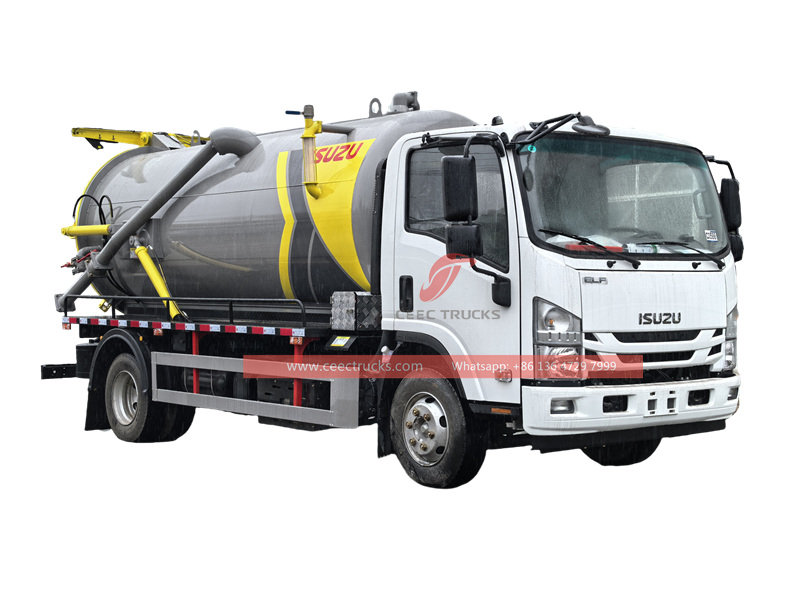

Isuzu 8000L vacuum sewage truck |
||
|
Vehicle Description |
||
|
Overall dimensions |
73 00*2 53 0* 29 50mm |
|
|
GVW |
180 00kg |
|
|
Curb weight |
9350 kg |
|
|
Sewage tank (m3) |
8 |
|
|
Drive system |
4 * 2 |
|
|
Chassis Description |
||
|
Chassis brand |
Isuzu |
|
|
Steering |
LHD |
|
|
Cab |
Howo ,single row, 2 seats,with A/C |
|
|
Wheelbase |
3815 mm |
|
|
Tire specification |
235/75 R 17.5 |
|
|
Tire quantity |
6 tires and 1 spare tire |
|
|
Engine |
Engine model |
4HK1 |
|
Emission level |
EURO 6 |
|
|
Displacement |
5.2 L |
|
|
Horse power |
190 HP |
|
|
Weight |
960 Kg |
|
|
Fuel |
Diesel |
|
|
Gear box |
Model |
Isuzu MLD |
|
Number of gears |
6 speed |
|
|
Brake system |
Air break |
|
|
Axle |
Front |
3 . 5 T |
|
Rear |
8 T |
|
|
Fuel tanker |
Type |
Steel |
|
Capacity |
100 L |
|
|
Tanker Description |
||
|
Tanker
|
Capacity |
8 000 Liters |
|
Material |
6 mm thickness, high quality carbon steel |
|
|
Structure |
Welding, vacuum tank, Cylindrical |
|
|
Pump
|
Type |
Water circulation pump |
|
Flux |
4 8(L/S) |
|
|
Rating speed |
7 00~ 9 00(r/min) |
|
|
Shaft power |
5(kw) |
|
|
Features |
Low speed, low fuel consumption, low noise, high vacuum, high efficiency |
|
|
Pipe |

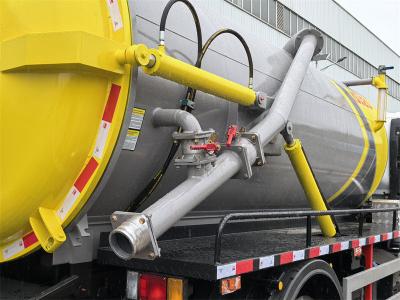

Suction and discharge pipe |
|
|
Special function |
Suction time ≤ 5min, effective suction range ≥ 8, Max vacuum degree ≤ 15 KPa, dump angle ≥ 45° |
|
|
Standard configuration |

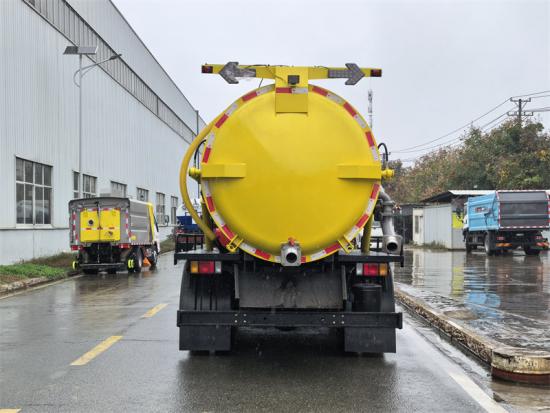

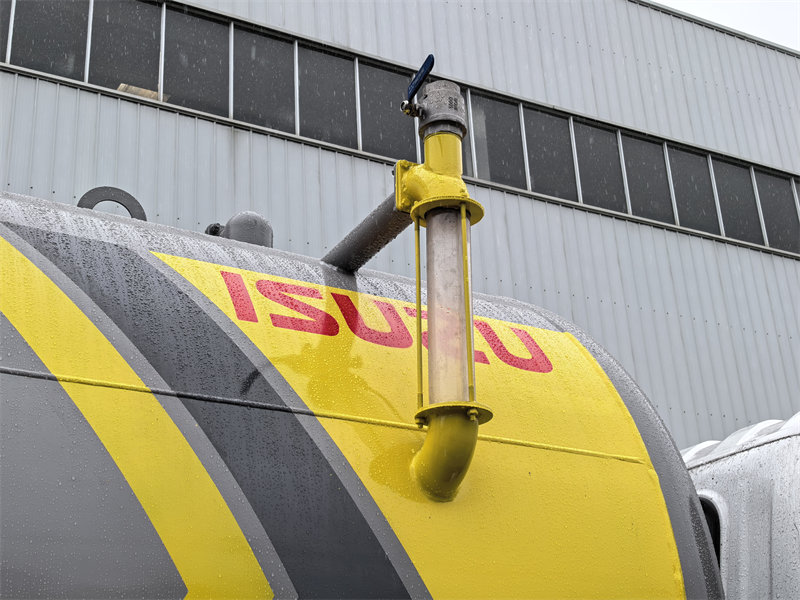

Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically. |
|
|
Optional configuration |
Tanker material: stainless steel. Vacuum pump : China or Italy vacuum pumps. Anti rust coating inside tank |
|
1. SK pumps utilize optimized flow path design and precision rotor machining technology to establish extremely high vacuum levels.
2. Key components of SK pumps , are made of high-strength, wear-resistant alloys or treated with special coatings, providing exceptional resistance to wear and corrosion.
3. SK pumps are designed with thermal management in mind. An optimized structure promotes heat dissipation, preventing performance degradation or damage due to excessive temperatures.
|
|
|
Specification |
Unit |
Value |
|
Free air capacity |
cfm |
435 |
|
Air capacity at 15" Hg/50% vacuum |
cfm |
489 |
|
Max. Vacuum |
Hg (in.) |
2 4 |
|
Max. Pressure |
psig |
2 3 |
|
Power required at 15" of vacuum |
hp |
15 |
|
Power required at max. pressure |
hp a |
25 |
|
Max. speed |
rpm |
9 00 |
|
Working speed |
rpm |
7 00 |
|
Oil tank capacity |
lt |
4.8 |
|
Oil consumption |
Gr/h |
19 0 |
|
Sound pressure at 7 meters (23 ft) 60% vacuum |
dB |
70 |
|
Hose |
in |
3/4 |
|
Flange |
in |
- |
|
Weight |
lbs |
486 |
♦ Tank design Use corrosion-resistant materials (such as stainless steel, carbon steel + anti-corrosion coating) .
♦ Inner wall treatment, spray epoxy resin or polyurethane coating, thickness ≥ 200μm, acid and alkali corrosion resistance.
♦ S andblasting and rust removal, spray anti-rust primer + polyurethane topcoat, suitable for complex outdoor environments.
♦ T he tank body welding must use argon arc welding or laser welding to ensure that the weld is uniform and free of pores.
♦ Annealing treatment is required after welding to eliminate welding stress and avoid deformation and cracking.
♦ For tank body welding, the weld must pass flaw detection (such as X-ray or ultrasonic testing).
♦ Wave-breaking plates (bulkheads) are installed to reduce the impact of liquid sloshing on the stability of the Howo sewage tank truck.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasonable price
3.we can offer your a reliable after-sell service
4.we have skilled professional design team
5. promptly delivery. any order is welcome.
We CEEC TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.
★ Type Euro 6, moteur ultra-puissant
★ Vacuum pump super powerful, efficient pump in and out
★ 12 months fast moving spare parts for FREE
★ Authorized Isuzu sewage suction trucks exporter
★ Training service for Isuzu sewer cleaner trucks
CEEC TRUCKS est un exportateur majeur de camions aspirateurs Howo en Chine. Forts de plus de 10 ans d'expérience dans l'exportation de camions aspirateurs, nous garantissons des délais de livraison rapides et une garantie de 12 mois sur nos camions de nettoyage d'égouts. Nos camions-citernes à vide sont vendus dans plus de 80 pays, notamment en Europe de l'Est et dans les pays de la CEI, en Afrique, en Asie du Sud-Est, en Amérique centrale et du Sud, au Moyen-Orient, etc.
