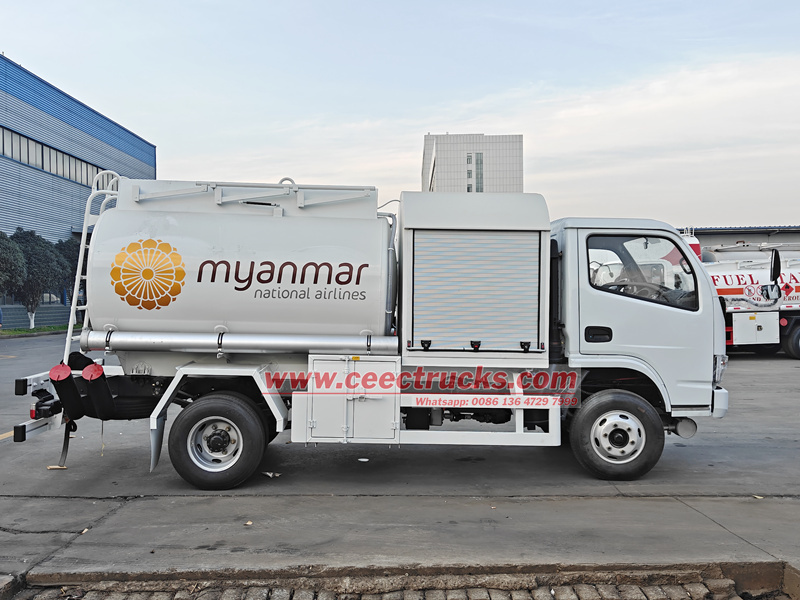

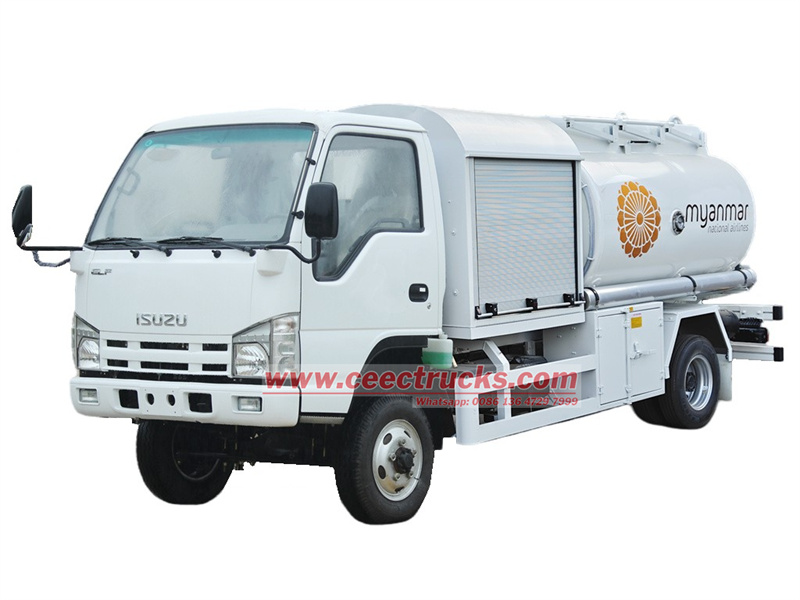

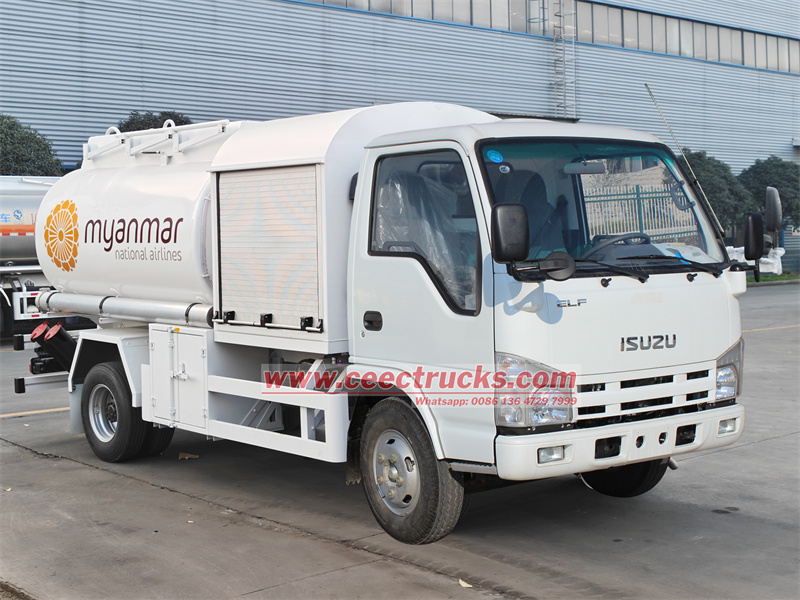

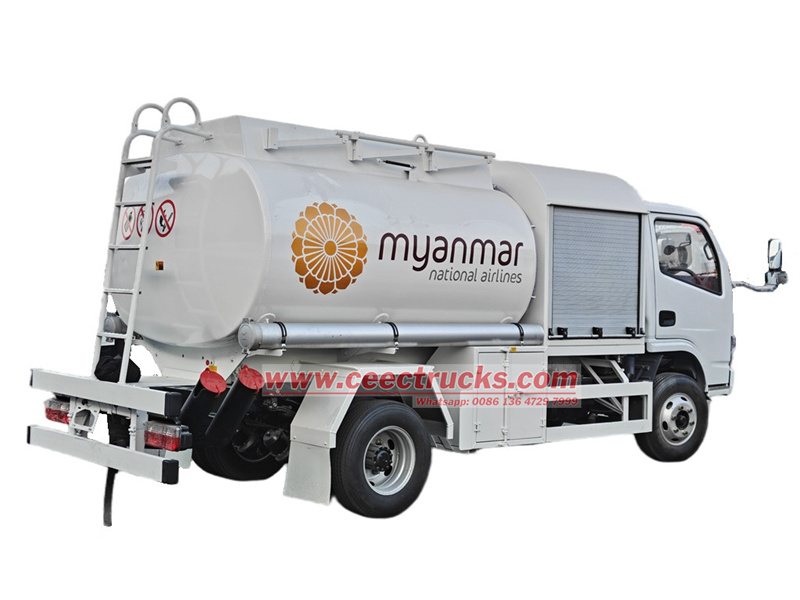

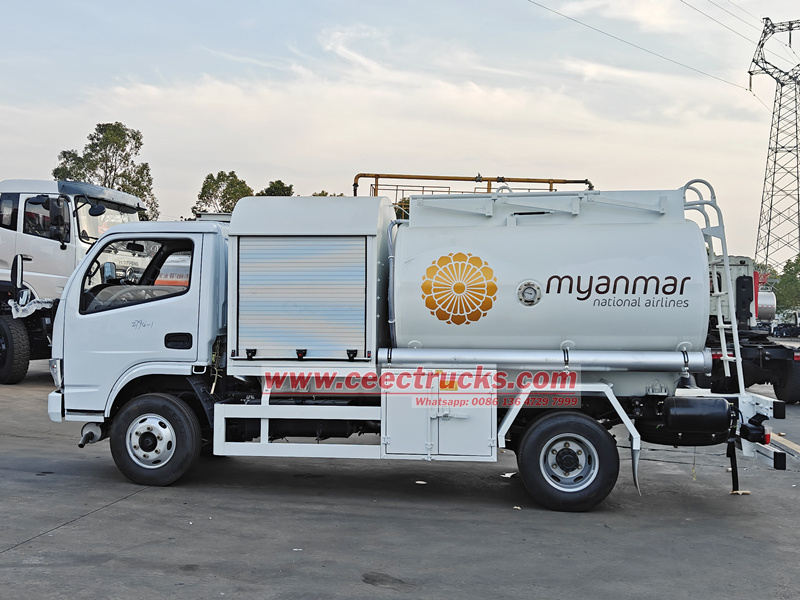

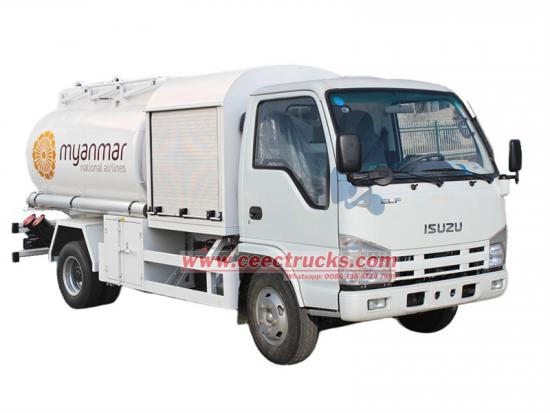

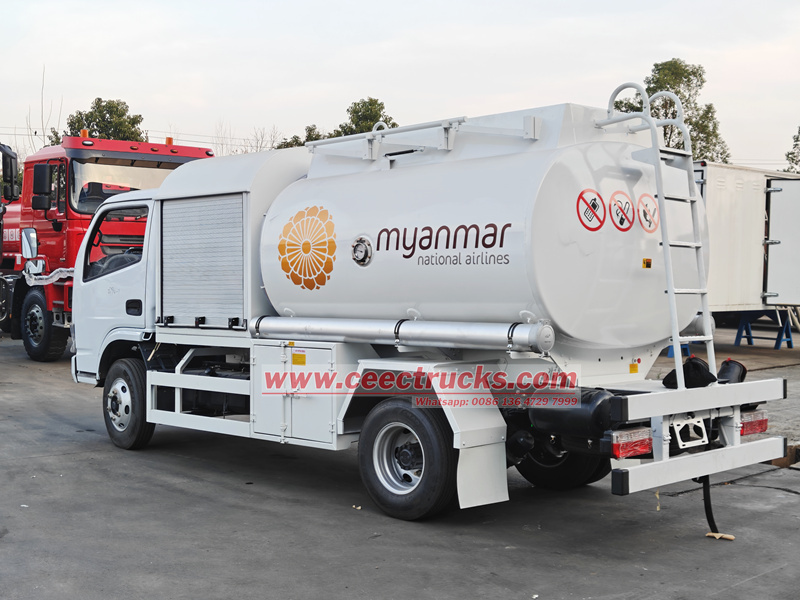

Japanese brand ISUZU newly designed top quality 5000Liters aviation refueler truck is used for helicopter refueling and big plane refueling. Which based on ISUZU mini 100P truck chassis, matched working with 4KH1CN6LB diesel engine 120HP, matched with aluminum alloy fuel tanker with capacity 5000liters, also in the front of fuel tanker equipped with pump room, inside with refueling hose reel and matched normal refueling gun and underwing refueling gun, also special customized fuel filters, then can make truck an ideal truck for jet fuel refueling work.
Capacité de travail:
5000LitersDimensions ( mm ):
5995*2200*2650 mmEmpattement ( mm ):
3360 mmPuissance du moteur:
88KW / 120HPType de moteur:
4KH1CN6LBTransmission par essieu:
4x2, LHDboîte de vitesses:
MSB 5 shift manual gearboxRemarques:
Available for aircraft jet fuel and refueling work for helicopter and big plane
[if gte mso 9]>

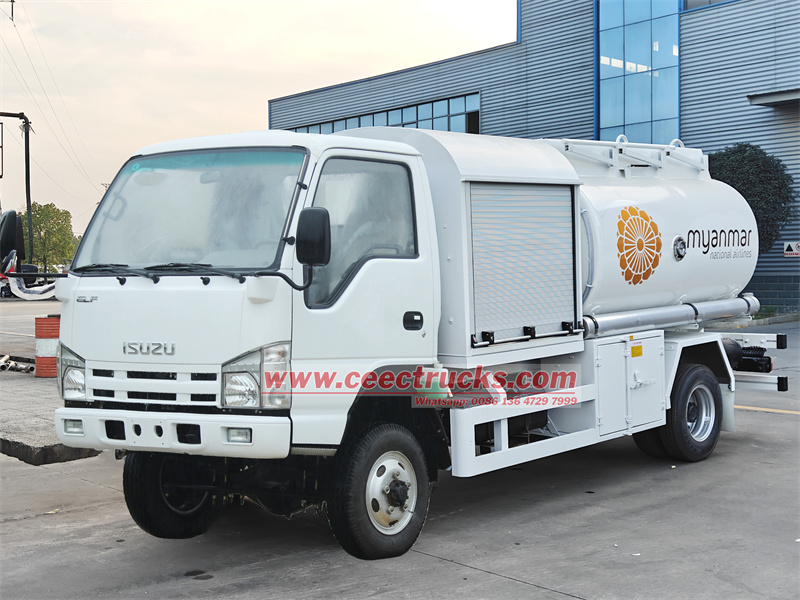

Singapore clients purchased ISUZU 5000Liters aviation refueler tanker truck for aircraft refueling process, which is manufactured by CEEC TRUCKS. ISUZU 100P 5cbm jet fuel tanker truck 5000Liters aviation refueler truck is produced based on smaller ISUZU 4x2 truck chassis, equipped with 4KH1CN6LB diesel engine, efficial horse power output can be 88KW / 120HP, emission 2999cc, customized to remove the exhaust DPF system and ADBlue, also originally reprogram the ECU process, so can guarantee truck working as EURO 3 and not have power limit problem. Matched working with MSB 5 shift manual gearbox, convenient for driving and lower fuel consumption. Upper body kit is Aluminum alloy material 5000L fuel tanker body, efficiently for storage and transport aviation jet fuel, in the front of tanker matched with independent pump room, inside with refueling hose reel and refueling gun, reliable fuel filter device with flow rate 400Liters/min, multiple valves to realize pump in and pump out function, all make ISUZU 5000L Jet Fuel tanker truck high quality aluminum alloy aviation fuel tanker for helicopter refueling work.
CEEC factory
is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
▶ Features:
★ Japanese ISUZU 4KH1 diesel engine, 100,000 Km without prblem.
★ MSB 5 shift manual gearbox, golden partner, lower fuel consumption
★ Smaller ISUZU 100P newly cabin, 2 seats
★ Aluminum alloy jet fuel tanker, 5000L volume
★ Efficiently jet fuel filter, 400liters/min flow rate
★ Multiple refueling hose reel with gun
★ Integrated control panel
▶ ISUZU 5000Liters Aircraft Refueler Truck Parameters :
| Name | I SUZU 5000Liters Aircraft Refueler Tanker Truck manufacturer | ||
| Condition | New condition/Left hand drive | ||
| Drive Type |
4x2, optional 4x4 Full Wheel Drive, All Wheel Drive, AWD. Off Road Type For Army, Military Using |
||
| Chassis | Brand | ISUZU | |
| Model | ISUZU mini ELF 100P | ||
| Curb weight(kg)(Whole Truck) | 3600 kg | ||
| Loading weight(kg) | 5000 kg | ||
| Wheelbase(mm) | 3360 mm | ||
| Front/Rear axle loading weight(kg) | 2500/4800 kg | ||
| Dimensions(mm)(Whole Truck) | 5995×2200×2600 mm | ||
| Max. driving speed(km/h) | 100 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes |
Service brake: dual circuit compressed air brake.
Parking brake:(emergency brake): spring energy, compressed air operating on rear wheel. Auxiliary brake: engine exhaust valve brake |
||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6 pcs with one spare tire | |
| Specifications | 7.00R16 | ||
| Fuel tank volume(L) | 76 L | ||
| Transmission | ISUZU MSB 5 shift manual gearbox | ||
| Steering | Power steering, hydraulic steering with power assistance | ||
| Cab in | It can accommodate three people, With Air conditioner | ||
| Engine | Brand | Japanese ISUZU 4KH1CN6LB | |
| Model | 4KH1CN6LB | ||
| Fuel type | Diesel | ||
| Displacement(ml) | 2999ml | ||
| Power(kw) | 88kw | ||
| Horsepower(HP) | 120 HP | ||
| Cylinder number | 4 pcs | ||
| Rated speed(rpm) | 2900 rpm | ||
| Emission standard |
Euro 6 as standard Optional to be customied remove DPF and ADBlue, and then reprogram the ECU, to guarantee truck working as EURO 3/4 |
||
| Upper & Equipment | |||
| Fuel tank | Capacity (cbm) | 5cbm, 5000Liters, 5M3, 5 Cubic Meters | |
| Tank material | Aluminum Alloy or Stainless Steel | ||
| Compartment quantity(pcs) | 1 pcs | ||
| Filling medium | 5cbm | ||
| Piping system | Aluminum Alloy or Stainless steel | ||
| Manhole | Quantity(pcs) | 1 pcs | |
| Size(mm) | 500 mm / DN500 | ||
| Filter |
I nternational brand filter CLQ-0090 model, with efficiently flow rate 400Liter per minute, work ing pressure 1.0Mpa. efficiently and reliable. 3 pcs Coalescing Filter Elements, model YK-100/400C 2 pcs Separation Filter Elements, model YK-100/400F |
||
| Remarks | Pls directly contact with us for more technical parameters | ||
▶ Isuzu 5CBM Aviation Jet Oil Refueler truck Component :
ISUZU smaller 100P jet fuel tanker truck is specialized customized for aircraft refueling. Which build based on original Japanese ISUZU truck chassis, matched with specialized refueler upper body kit, including alluminum alloy tanker body, stainelss steel fuel pump, specialized fuel filter, hose reel with customized refueling gun, integrated control system.

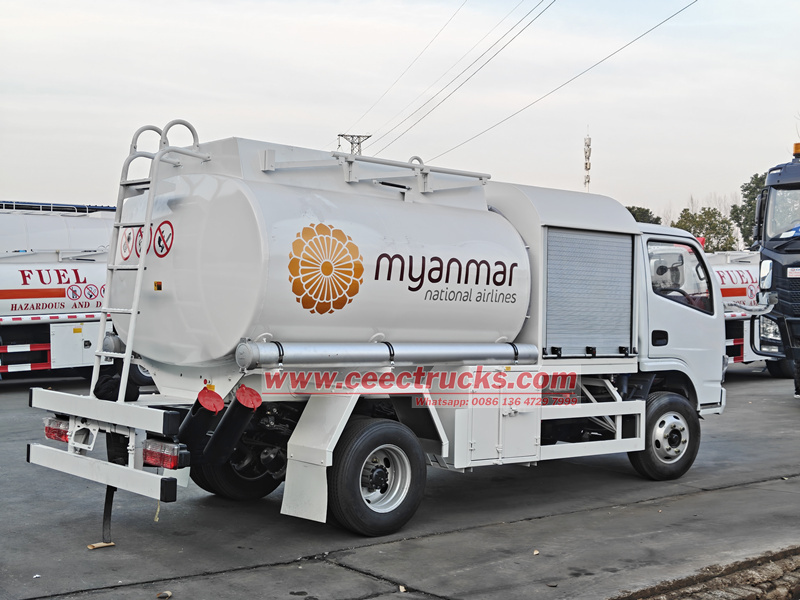

5000L Aluminum Alloy fuel tanker body
Customized Aluminum alloy material fuel tanker body kit, 5182 series aluminum alloy, thickness 5mm, round shape design, in the front matched with independent pump room with hose reel and refueling gun inside, also fuel filter for safety working.

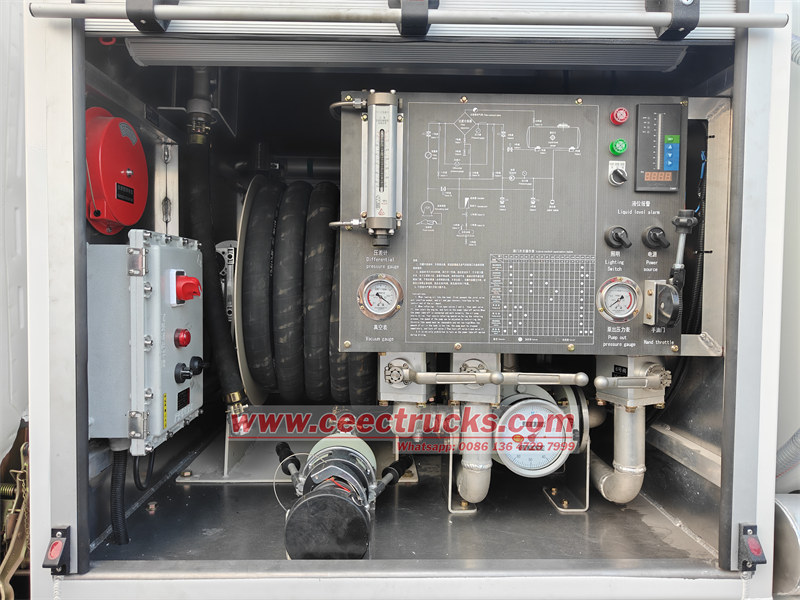

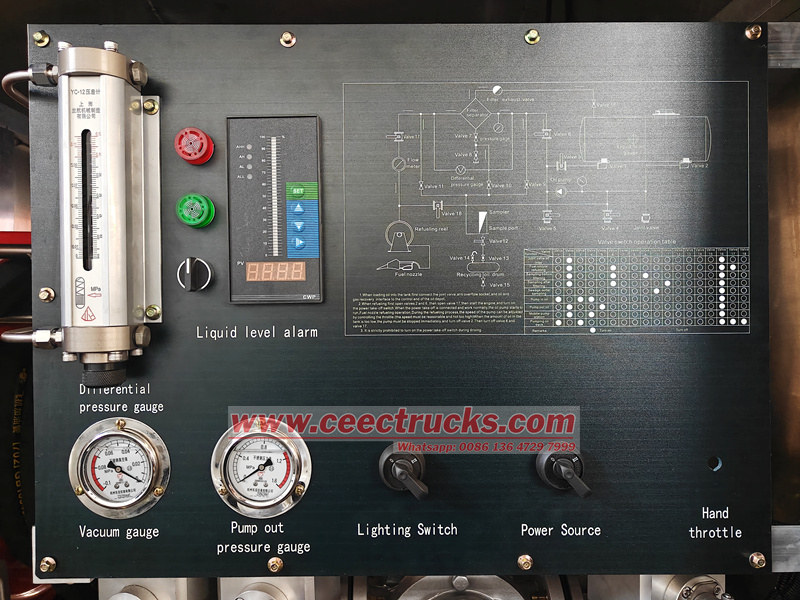

Left View of the Control Room

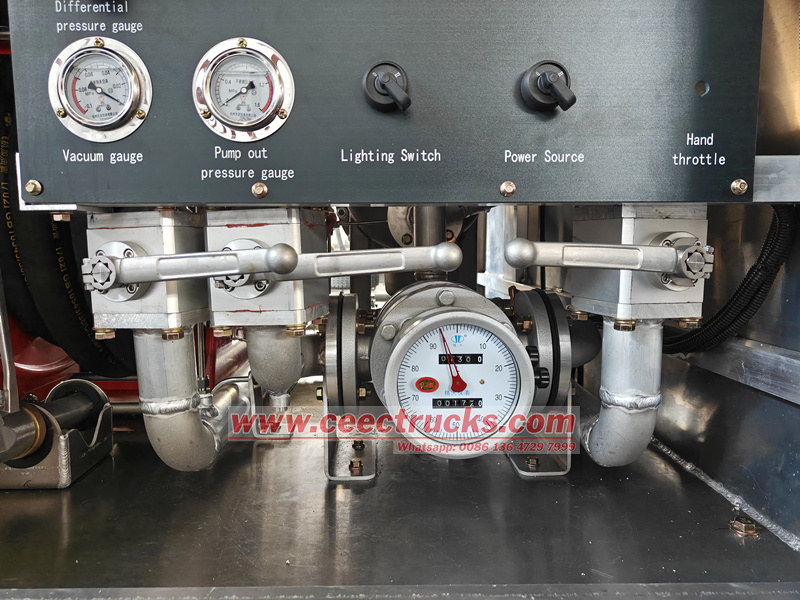

Left side view of the independ room, which have integrated control panel, language can be English, French, Russia, Arabic, etc. Matched working with independent control valves and flow meter. The hose reel matched with refueling gun for multiple usage.

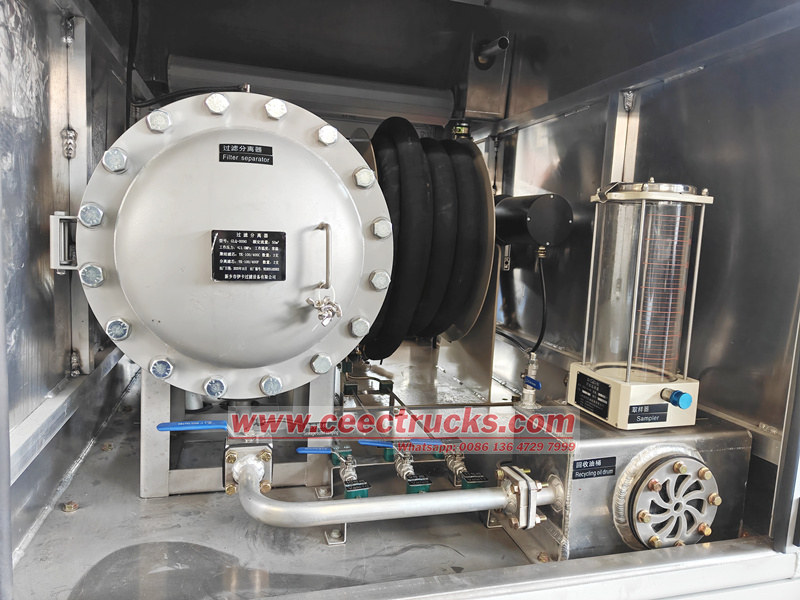

Right side view of the independent room

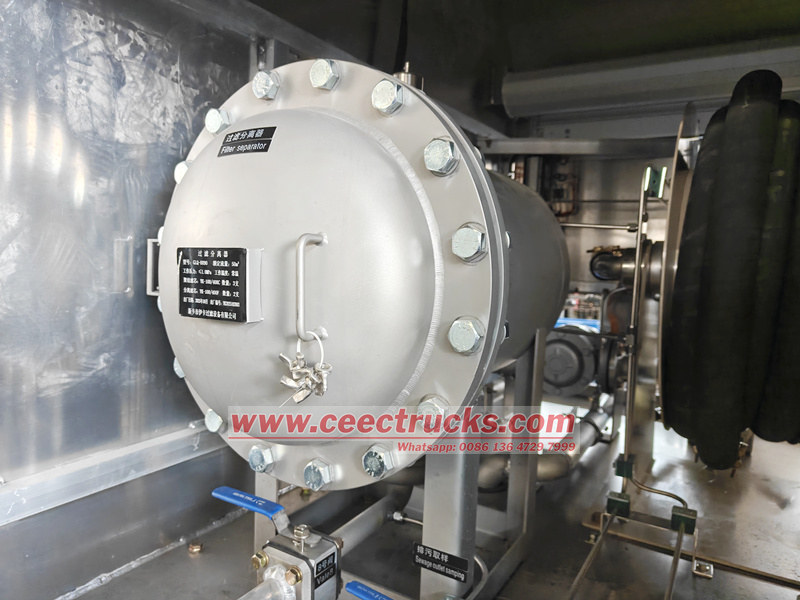

Right side view of the independent room have the most important component of the aviation fuel truck, the fuel filter, which with model CLQ-0090 model, with efficiently flow rate 400Liter per minute, working pressure 1.0Mpa. efficiently and reliable.

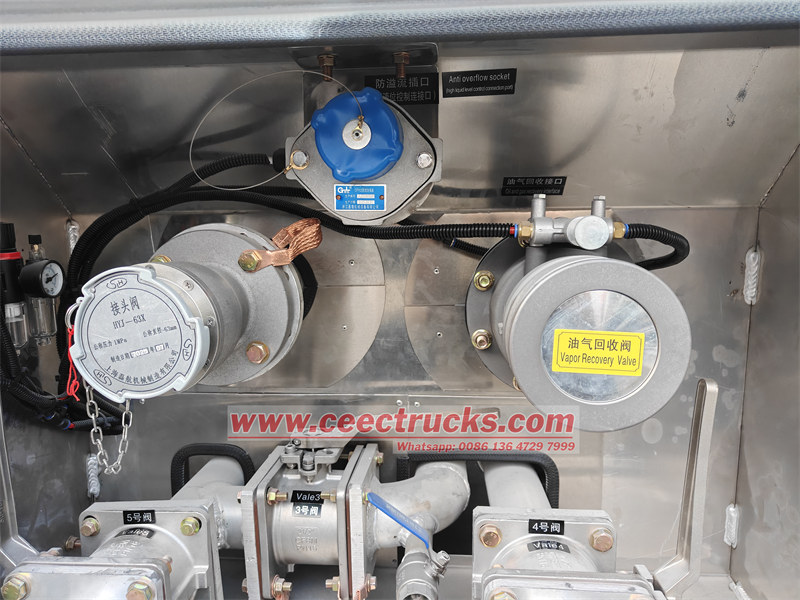

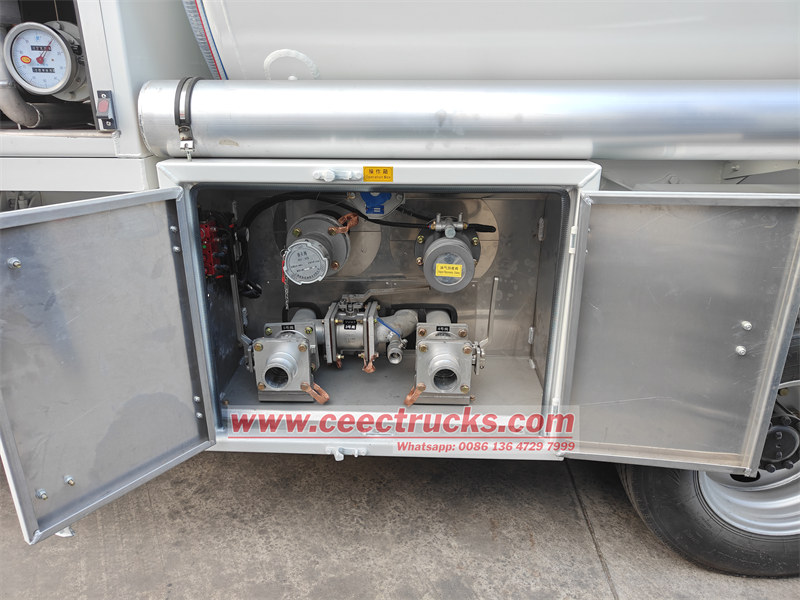

Isuzu jet fuel tanker truck with pump in and pump out valve
Isuzu jet fuel tanker truck with capacity 5000Liters, matched with stainless steel fuel pump, equipped pump in and pump out valves, all with independ control system, also matched with Emergency Stop button for safety.
▶ How to use the ISUZU Aviation Jet Refueler Truck :
Isuzu aircraft jet fuel tanker truck is designed for multiple aircraft refueling working, after installed with indepentent hose reel, and can be matched working with multiple refueling gun, then can be used for multiple refueling working.

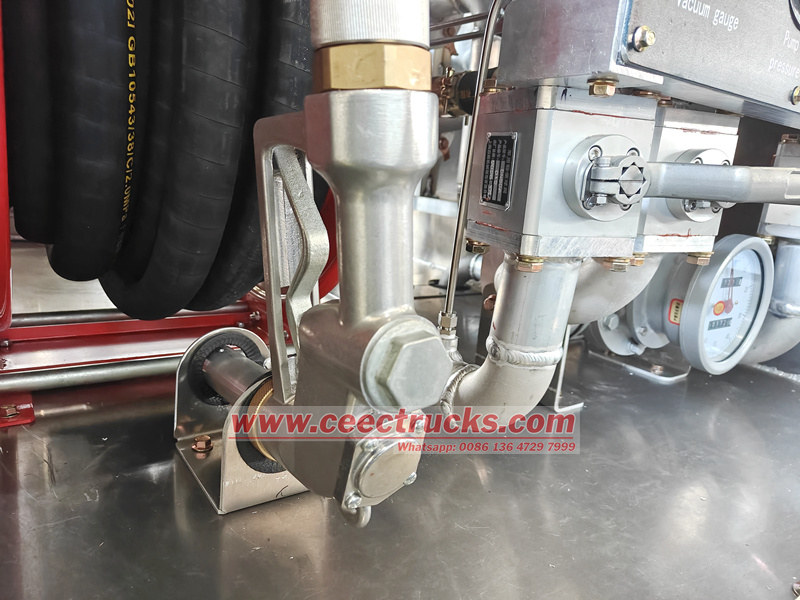

Hose reel with normal 1.5" refueling gun
Normally matched with standard 1" or 1.5" refueling gun, which can be used for multiple equipment refueling process. Available for trucks refueling process, helicopter refueling process, heavy equipment refueling process, etc.

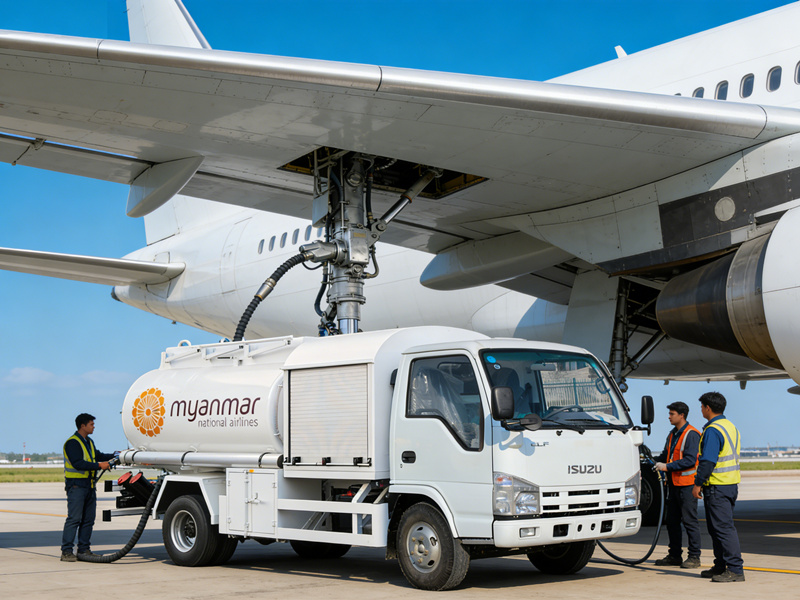

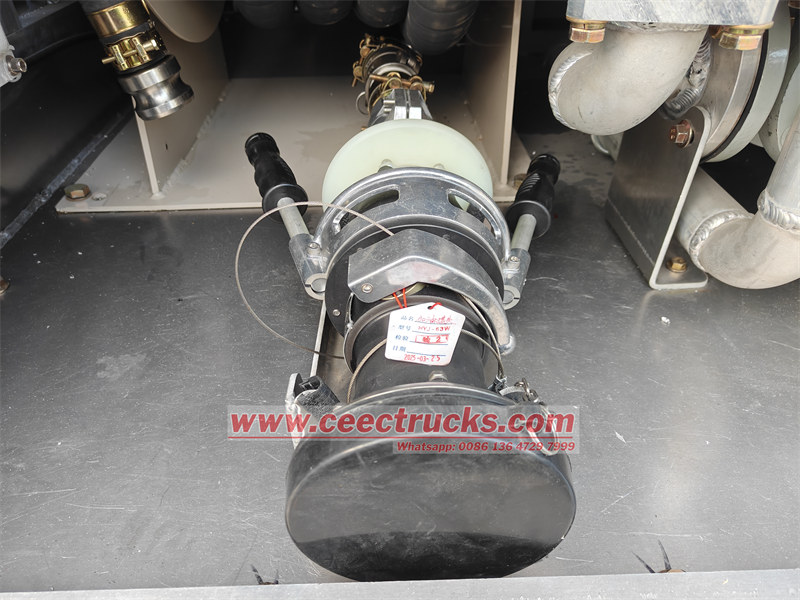

Hose reel with customized DN63 refueling gun
For some clients they also need to have the aircraft refueling truck used for big airplane refueling process, then we can optional to choose special underwing refueling connector, which have details as below and very suitable for heavy aircraft refueling work:
Model: HYJ-63W
Size: DN63 / 63mm
Pressure: 1.0 Mpa
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5. promptly delivery. any order is welcome.
CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
★ ISUZU diesel engine type, 4KH1CN6LB, super powerful
★ 5000Liters aviation jet fuel capacity can be optional
★ Independent pump room with filter for aircraft jet fuel
★
12 months fast moving spare parts for FREE
★ Authorized ISUZU Aircraft Refueler Truck exporter
★ Easy operation and easy maintenance
