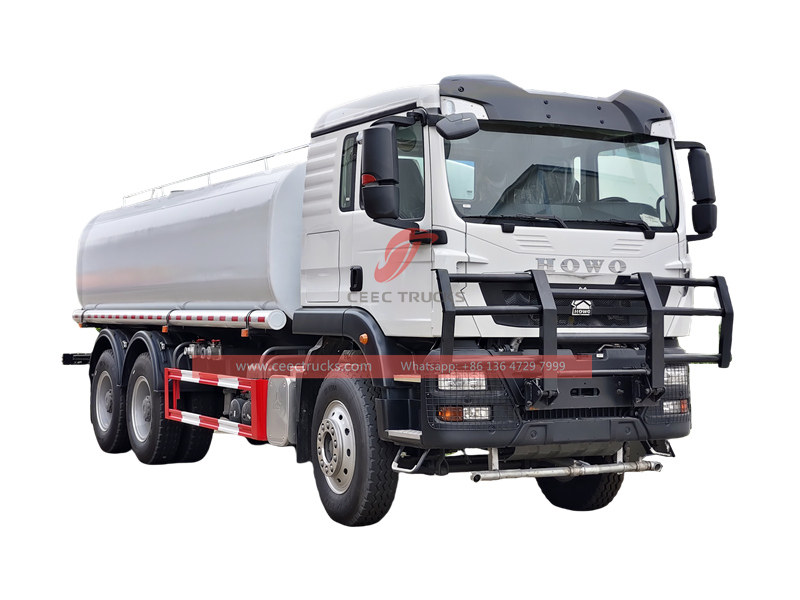

Le Howo 6 x 4 water tanker is equipped with a WP1 2S40 0E 201 inline 6 cylinder, 4 stroke engine featuring supercharged, intercooled, and water-cooled technology. It delivers 400 HP and a maximum torque of 1 3 50 Nm, available at 1 6 00 rpm and rated at 1 8 00 rpm, ensuring the Howo heavy water tanker's powerful power for starting and climbing. The Howo cabin features a one and a half row design with two seats and a sleeper. Equipped with A/C and radio, it provides a comfortable driving environment while also supporting long-distance water transport missions.
Capacité de travail:
20000LDimensions ( mm ):
10300*2580*3250 mmEmpattement ( mm ):
4500+1370 mmPuissance du moteur:
400HPType de moteur:
WEICHAI WP12S400E201Transmission par essieu:
6x6boîte de vitesses:
Sinotruk HW19710 10-speed,manualRemarques:
Payload capacity can be customizedLe Howo 6 x 4 water tanker is equipped with a WP1 2S40 0E 201 inline 6 cylinder, 4 stroke engine featuring supercharged, intercooled, and water-cooled technology. It delivers 400 HP and a maximum torque of 1 3 50 Nm, available at 1 6 00 rpm and rated at 1 8 00 rpm, ensuring the Howo heavy water tanker's powerful power for starting and climbing. The Howo cabin features a one and a half row design with two seats and a sleeper. Equipped with A/C and radio, it provides a comfortable driving environment while also supporting long-distance water transport missions.
With a large water tank and high-quality materials, the Howo water sprinkler truck boasts a tank capacity of over 20 ,000 liters, meeting the needs of large scale water spraying operations, reducing frequent refills and improving operational efficiency. The water tank is made of high quality carbon steel (Q235) and is made into an oval-shaped tank body. It has the advantages of high strength and corrosion resistance, ensuring the service life of the water tank.
CEEC factory
is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Manufacturer: CEEC TRUCKS Group
Product Features
★ Built on HOWO 6WD chassis, with 400HP powerful diesel engine and HW19710 10-speed gearbox.
★ Equppied with 12.00R20 wide tires, which are suitable for harsh road conditions.
★ The tank body is made of high quality carbon steel, with volume up to 18000 liters.
★ Equippied with China top brand water pump with large flow rate.
|

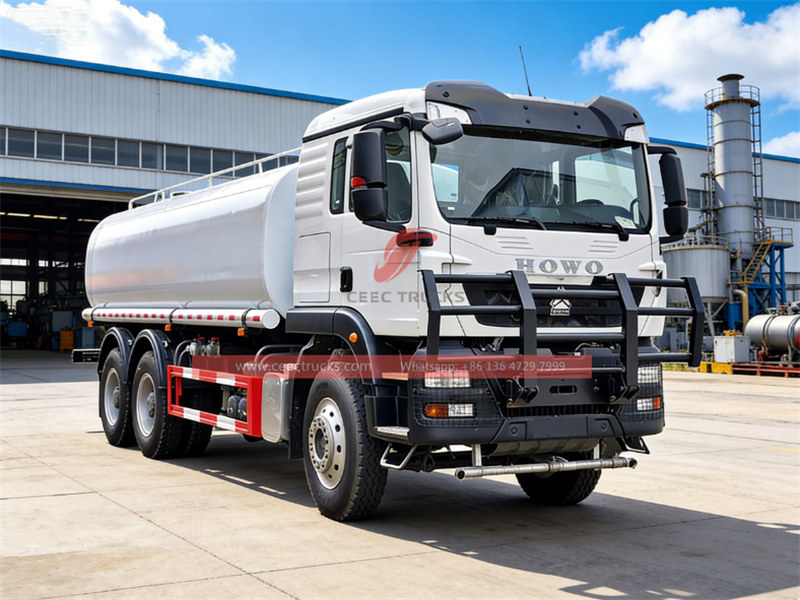

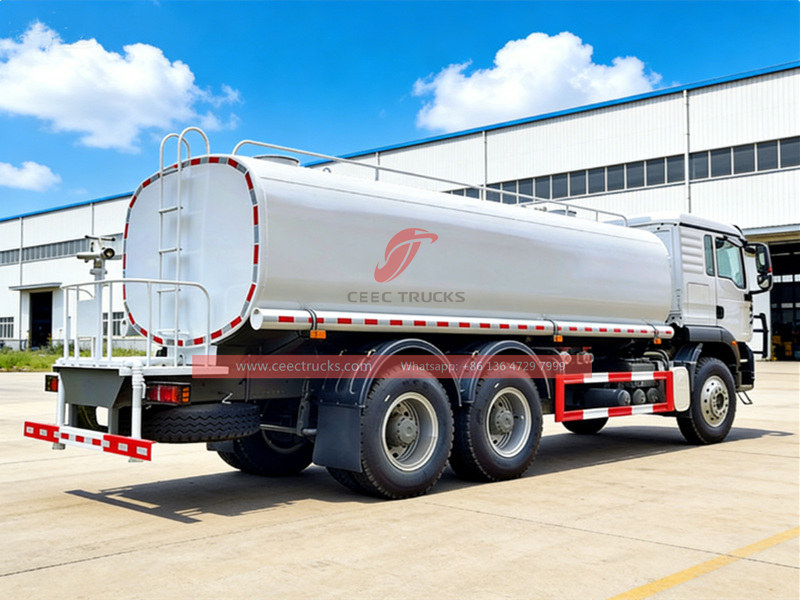

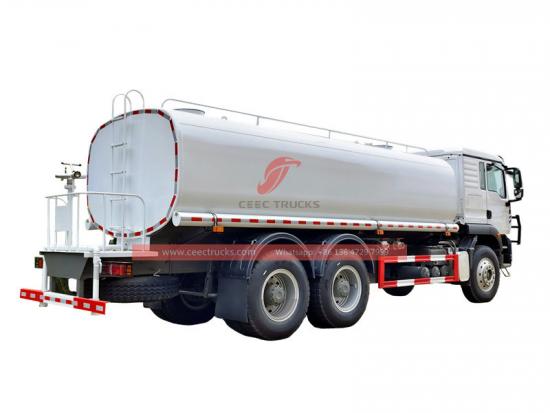

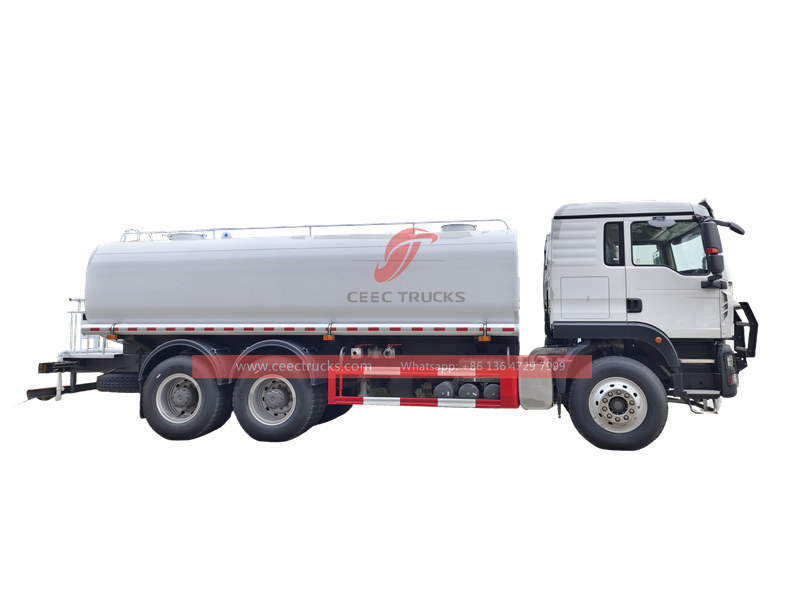

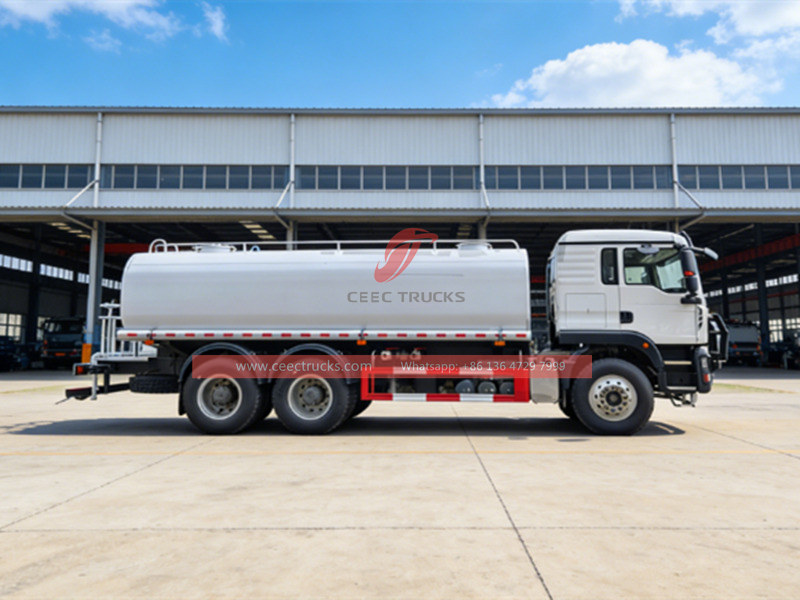

Howo heavy 20000L water tanker |
|||
|
Main parameter |
Overall dimension(LxWxH) |
103 00* 2 5 8 0*3 25 0mm |
|
|
W heel base(mm) |
4500+1370 mm |
||
|
Driving Type |
6 × 6 ,left hand drive |
||
|
Color |
White,blue, green, color can choose |
||
|
Front/rear overhang |
1 5 35/2215 |
||
|
Max speed |
10 0 km/h |
||
|
Weight in KGS |
GVW |
25 000 kg |
|
|
Curb weight |
11500 kg |
||
|
Loading capacity |
20000L |
||
|
Front axles loading capacity |
7 .5T |
||
|
Rear axles loading capacity |
1 6 T *2 |
||
|
Engine |
Engine model |
WP12S400E201 |
|
|
Engine type |
Inline 4 -cylinder 6 -stroke, supercharged, intercooled, water-cooled |
||
|
Horsepower |
400 HP |
||
|
Max. output (kw) |
294 Kw |
||
|
Rated speed |
16 00rpm |
||
|
Maximum Torque |
1550N.m |
||
|
Displacement(L) |
9 . 89 L |
||
|
Emission standard |
Euro 3 |
||
|
Transmission |
HW19710 ， 10 forward ,2 reserve |
||
|
Tire |
12.00R20 standard tire, 12 tires+1 spare tire |
||
|
Brake |
Air brake |
||
|
Steering |
Power steering |
||
|
Body
|
C apacity |
20000L |
|
|
S tructure |
TANK MATERAIL |
6 mm,Q 235 stee |
|
|
Pipe |
Galvanized pipe |
||
|

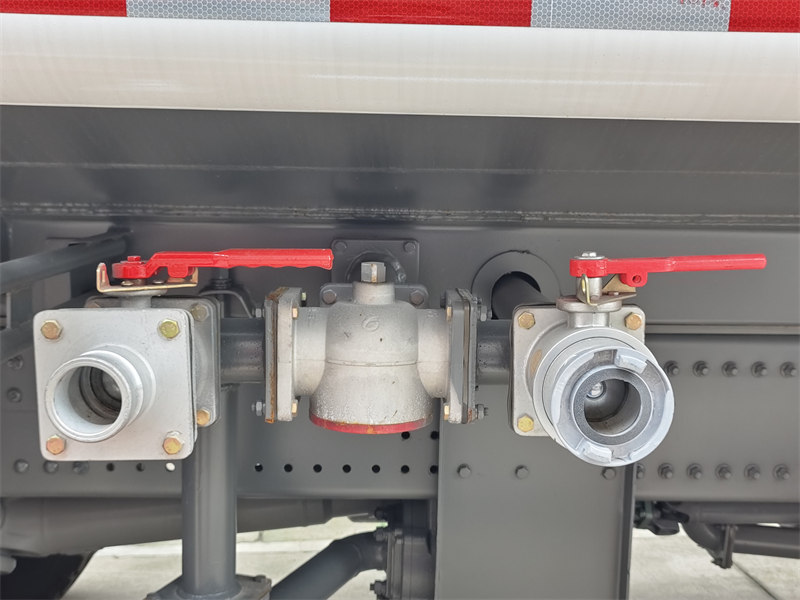

Discharge nozzle |
SS,at side bottom of tank,quick coupling |
||
|
Discharge nozzle |
Stainless steel faucet （ Option) |
||
|

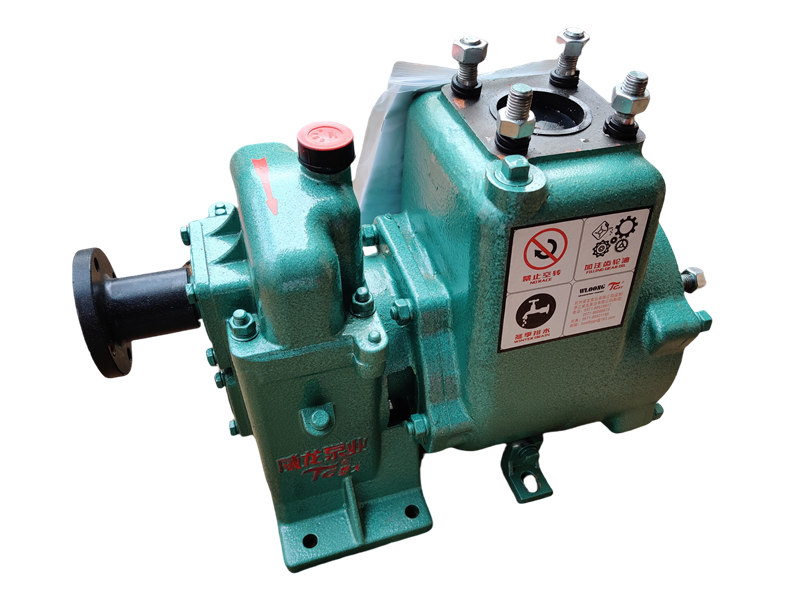

Water pump |
Model |
WEILONG 80QZF-60/90S pump |
|
|
Flow rate(L/m): |
60m3/h |
||
|
Head of delivery(m) |
90m |
||
|
Self-priming function(min/4m) |
1.5 |
||
|
Efficiency(%) |
95% |
||
|
Related rotate speed(r/min) |
1180 |
||
|
Matched power(kw) |
22 |
||
|
Water sprinkler system |
Front sprinkler jet |
14m |
|
|
Rear sprinkler jet |
13m |
||
|
Rear sprinkler nozzle range |
12m |
||
|
Water cannon range |
45m |
||
|
Water time |
＞ 5 minutes |
||
|
Working condition |
Flow≥ 60 L/ m , 1 .55Mpa |
||
|
Max working pressure |
≥0.9Mpa |
||

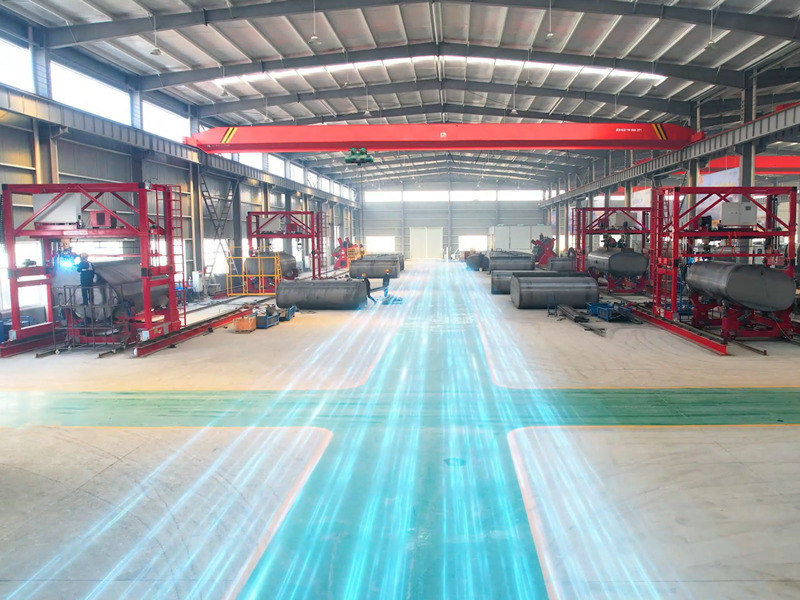

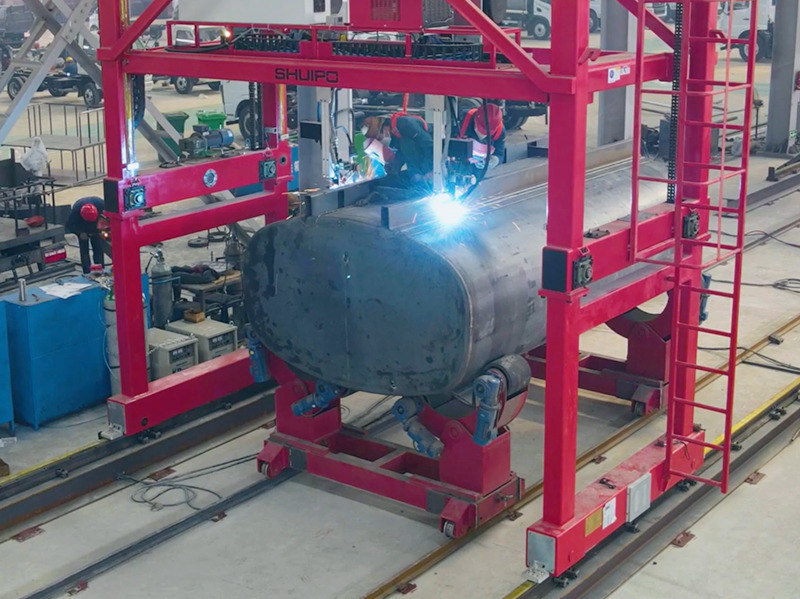

♦ The production line utilizes cutting-edge robotic automated welding and laser precision cutting.
♦ This ensures extremely high assembly accuracy and consistency, enabling customized customization.
♦ For 20 CBM tanks, high-strength, wear-resistant steel plates are used, utilizing CNC rolling and one-step spinning technology.
♦ This ensures uniform roundness and optimal stress distribution within the tank, eliminating dead corners.
♦ An advanced internal wave-shaped anti-wave plate design enhances structural strength while effectively reducing impact during liquid transportation.
♦ Equipped with the Weichai 400HP engine, it forms a golden powertrain with an HW1910 transmission and a low-ratio drive axle.
♦ It features an 6 x 4 drive system, high-strength frame materials, and a multi-leaf spring reinforced suspension system.
♦ The dual front axle steering design ensures exceptional load-bearing capacity while enhancing steering flexibility.
♦ The water pump, a renowned Chinese brand, boasts high flow, high head, and long service life, and is self-priming and self-discharging.

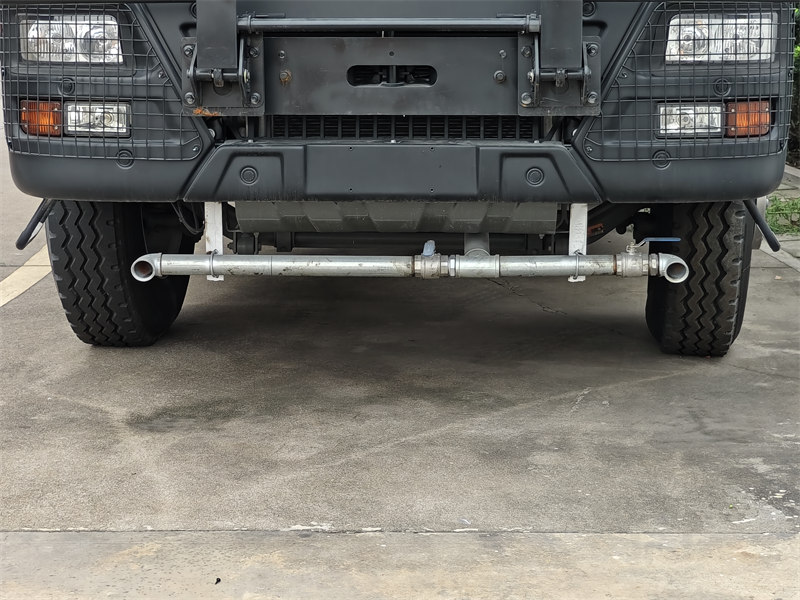

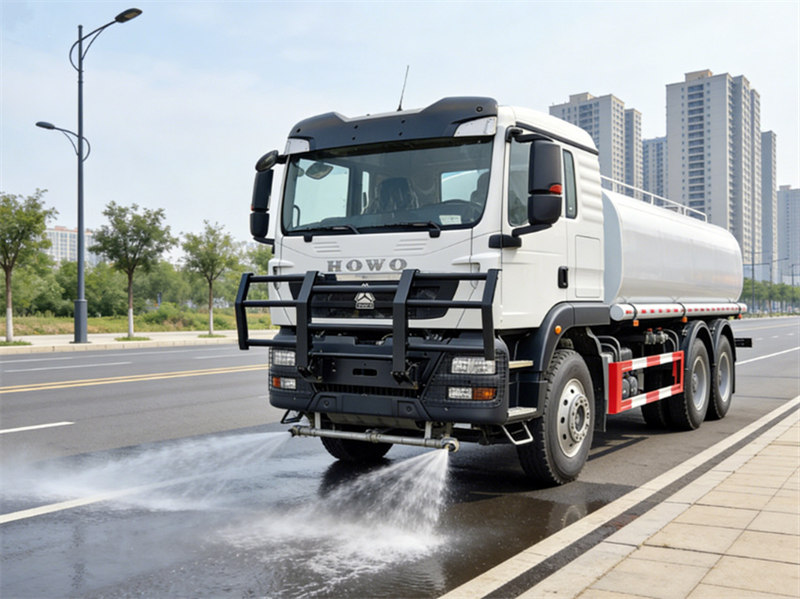

♦ It features front-end flushing, side spraying, and a rear sprinkler—all in one.

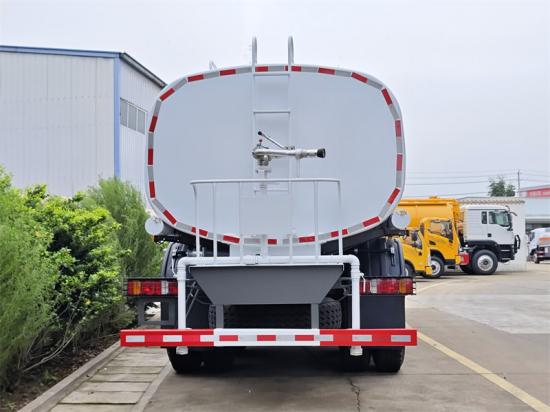

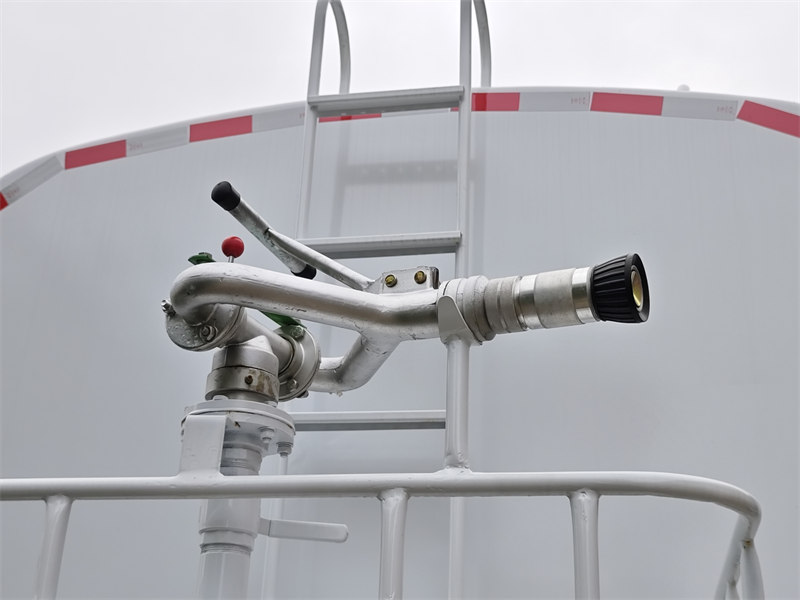

♦ The high-pressure water canon rotates 360 degrees and can be adjusted to a columnar configuration for maximum range.

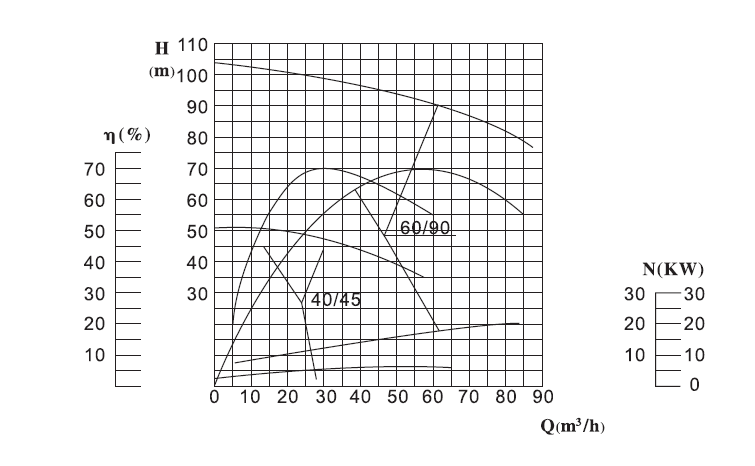

Specifications for common used water pump
|
Model |
Flow rate (m³/h) |
Head (m) |
Speed (r/min) |
Shaft power (KW) |
NPSHr (m) |
Self-priming time (min/4m) |
Efficiency (%) |
|
80QZBF-60/90N(S) |
60 |
90 |
1180 |
22.5 |
4.5 |
1.5 |
70 |
|
65QZ-40/45N(S) |
40 |
45 |
1450 |
9.25 |
4.5 |
1.5 |
72 |
|
65QZ-50/50N |
50 |
50 |
1180 |
10.5 |
4.5 |
1.5 |
70 |
|
65QZBF-50/110N(S) |
50 |
110 |
1450 |
24 |
- |
- |
70 |
♦ This Howo water tanker perfectly meets the water supply and sprinkler needs of urban construction, road maintenance, and landscaping irrigation.
♦ The large capacity water tank and high lift water cannon allow it to quickly transform into a "fire truck" in the event of an initial fire, reaching the scene and controlling the blaze as quickly as possible.
♦ All wheel drive system, can overcome various bad road.It can be used for drought relief in farmland, emergency water supply.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5. promptly delivery. any order is welcome.
CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
★ Weichai WP12S400E201 Euro 2 engine, super powerful
★ SINOTRUK HW19710 Manual 10-shift mechanical transmission gearbox
★ 12 months fast moving spare parts for FREE
★ Authorized HOWO 20CBM water tank truck
★ Training service for Howo 6x4 water sprinkler truck
Fournisseur et exportateur professionnel de camions-citernes en Chine, nous fournissons des produits de haute qualité. water tank truck. We can ensure the fast delivery time and 12 months guarantee for our water sprinkler truck. Our water tank truck are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
