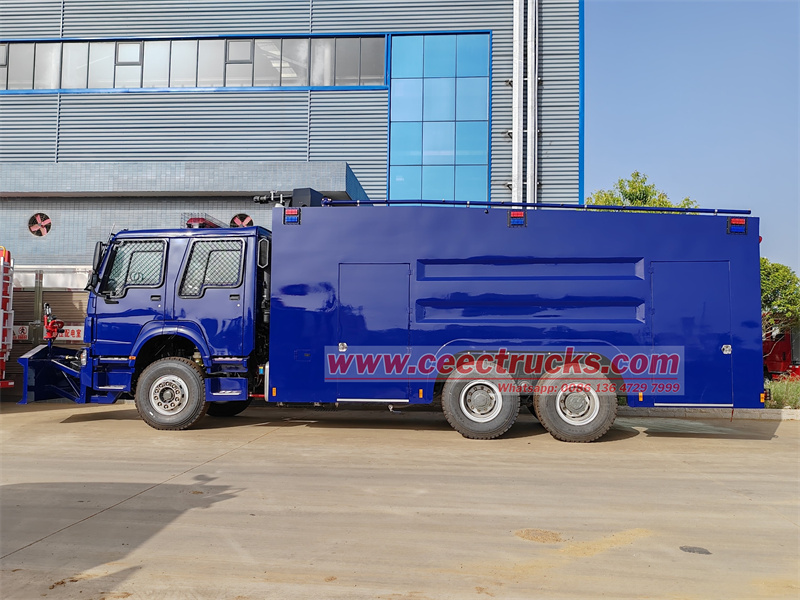

Camion blindé anti-émeute HOWO

Capacité de travail:
12cbm water tank
Dimensions ( mm ):
10500*2550*3950mm
Empattement ( mm ):
4600+1350mm
Puissance du moteur:
400HP
Type de moteur:
WP10H400E60
Transmission par essieu:
6x4,LHD
boîte de vitesses:
HW15710 gearbox,10 forward and 2 reverse
Remarques:
Emission medium: clean water, foam, pepper water, dye

Enquête maintenant

CeCamion blindé anti-émeute HOWO°

● La meilleure Chine Véhicule anti-émeuteusine

● Une équipe de vente professionnelle qui vous aidera à choisir le camion adapté.

● Constituer une équipe de contrôle qualité stricte pour garantir la qualité

● Livraison rapide. Toute commande est la bienvenue.

● Garantie de qualité de 24 mois

HOWO anti riot water cannon vehicle

*Véhicule anti-émeute HOWO 6X4*
Général	Modèle de camion	SINOTRUK HOWO
	Dimensions hors tout	1050025503950mm
	Poids à vide/PTAC	25000/14450kg
Paramètres du châssis
Taxi	Cabine double rangée du SINOTRUK HW76. Peut accueillir 2 à 4 personnes. Climatisée.
Type de lecteur	6x4, conduite à gauche
Empattement	4600+1350mm
Embrayage	Embrayage monodisque à ressort à diaphragme sec, diamètre 430(B) mm, à commande hydraulique avec assistance pneumatique
Freins	Frein de service : frein à air comprimé à double circuit.
Charge par essieu	Front/Rear	7000/18000kg
Tire	12.00R20,10+1tire
Transmission	HW15710 gearbox,10 forward and 2 reverse, with PTO
Engine	Make	WEICHAI
	Model	WP10H400E60
	Description	4 stroke direct injection diesel engine 6 cylinder in-line with water cooling, turbo-charging & intercooling
	Horse power	400HP/ 294Kw
	Displacement	9.5L
	Max torque	1900N.m
	Max torque speed	1000-1400rpm
	Emission	EURO 6
Upper & Equipment
WaterCannon	Roof riot water cannon	One, top of the pump room
		Range	≥70m
		Threat Range	≥40m
		Pitch Angle	-5°~ +45°
		Horizontal rotation angle	-90°~ +90°
	Front-firing water cannon	On the front of the truck, with direct current blooming water jet function
Water tanker	Volume	12000L
	Liquid inlet	Quantity(pcs)		2
		Size(mm)		DN65
	Loading water	Water pump self-suction water
		From fire hydrant directly
	Remarks	1.Equipped with buffers inside of the tanker. 2.Equipped with access window for future inspection and after sales service. 3.Equipped with overflow, exhaust vent. 4.Equipped with electronic water level gauge.
Foam tanker	Volume	100L
	Material	Stainless steel
Dye tanker	Volume	100L
	Material	Stainless steel
Pepper water tank	Volume	100L
	Material	Stainless steel

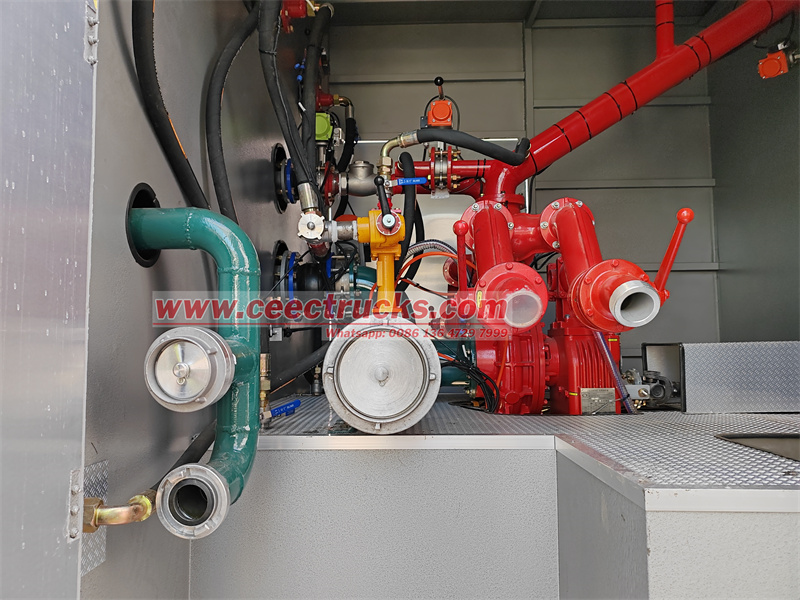

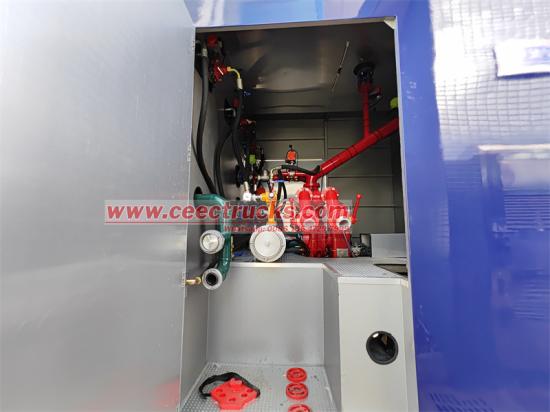

Fire pump	Model	CB10/60
	Pressure	1MPa
	Max working pressure	1.082MPa
	Max allowable inlet pressure	0.4MPa
	Flux	60L/s
	Max suction height	7m
	Rated speed	3280±50r/min

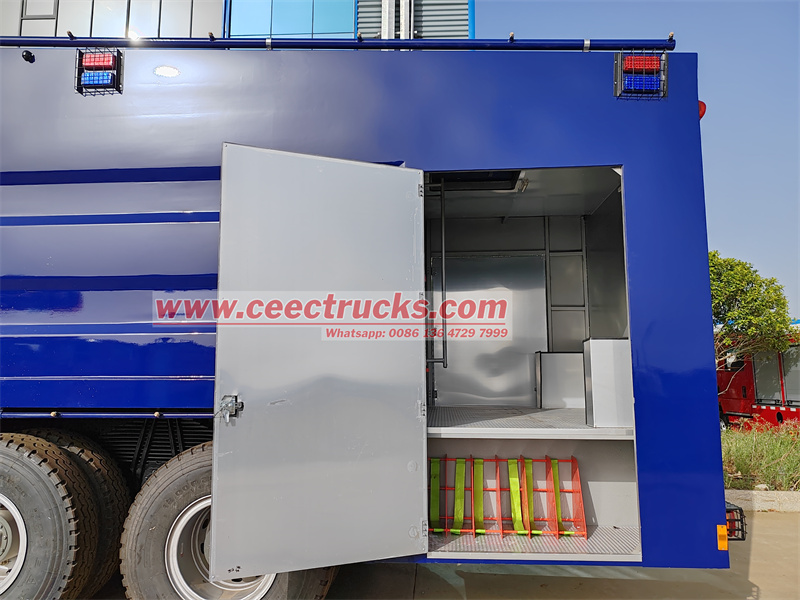

Equipment and device	PLC control system Antifreeze protection system Hydraulic obstacle removal system Network protection system Video surveillance system Broadcast propaganda system Power supply system Warning light warning system;
Optional configuration:	Remote control driving system, strong light lighting lifting system Tear gas launcher, PTZ camera Special network communication, single-soldier equipment package shelf Two water cannons can be installed on the top of the pump room, one on each side

technical drawing of HOWO armored crowd control riot truck

★.Chassis platform and powertrain: heavy-duty mobility core

1. Chassis architecture

● Based on the deep customization of the HOWO HW76 double-row cab chassis, it adopts a 4600+1350mm long wheelbase design, shortens the rear overhang and increases the approach angle to 28°, adapts to complex terrains such as urban street fighting and mountain slopes, and takes into account the rapid deployment and load balance of a 6-person combat team.

● The double-row cab adopts a fully armored welded structure, the side windows are equipped with hydraulic lifting bulletproof glass, and the front windshield is equipped with a 0°~70°adjustable bulletproof net, supports electric control in the cockpit, and the riot protection level reaches GA668-2006 Class B.

2. Power system

● Equipped with WP10H400E60 National VI diesel engine, with a maximum power of 400 horsepower (294kW)/1900rpm and a peak torque of 1900N·m/1200-1400rpm, it is matched with HW15710 ten-speed full-synchronous gearbox, and the low-speed gear ratio is optimized to 12.4:1 to ensure heavy-load starting and climbing capabilities.

● The chassis integrates dual-circuit pneumatic brakes + hydraulic retarder, and the braking distance is shortened to 15m (30km/h→0), which meets the emergency braking needs in high-density crowd environments.

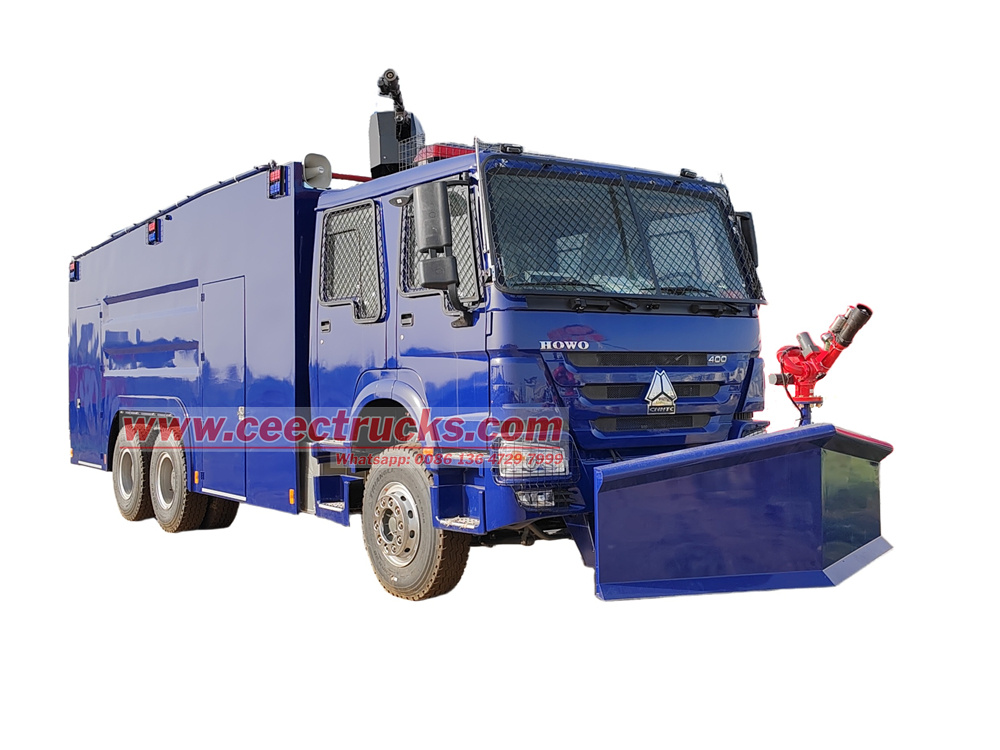

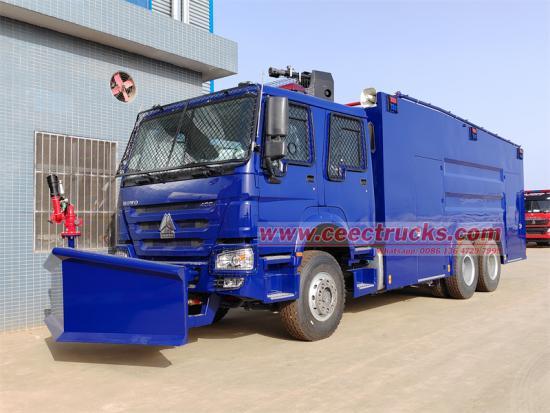

HOWO 400HP explosion-proof vehicle HOWO armored crowd control riot truck

★. Explosion-proof top and multi-media combat system

1. Multifunctional tank layout

Media type	Volume	Technical parameters
water tank	12000L	Carbon steel material, double-layer vacuum insulation, built-in wave-breaking board
Foam tank	100L	AFFF 3% aqueous film-forming foam, mixed with clean water tank in linkage ratio
Pepper water tank	100L	OC natural capsaicin solution, concentration 10%, PH value 6.5-7.5
Dye tank	100L	Irreversible fluorescent dye, ultraviolet development time≥72 hours

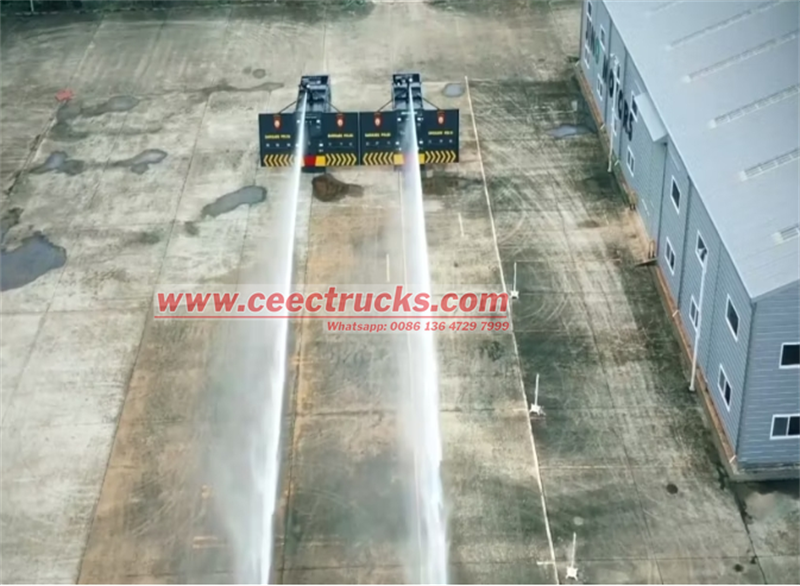

2. Water cannon system

●Top main cannon:driven by CB10/60 medium and low pressure fire pump, flow rate 60L/s@1.0MPa, range≥70m, supports three modes of DC/flowering/spray, 360°rotation covering a radius of 200m area.

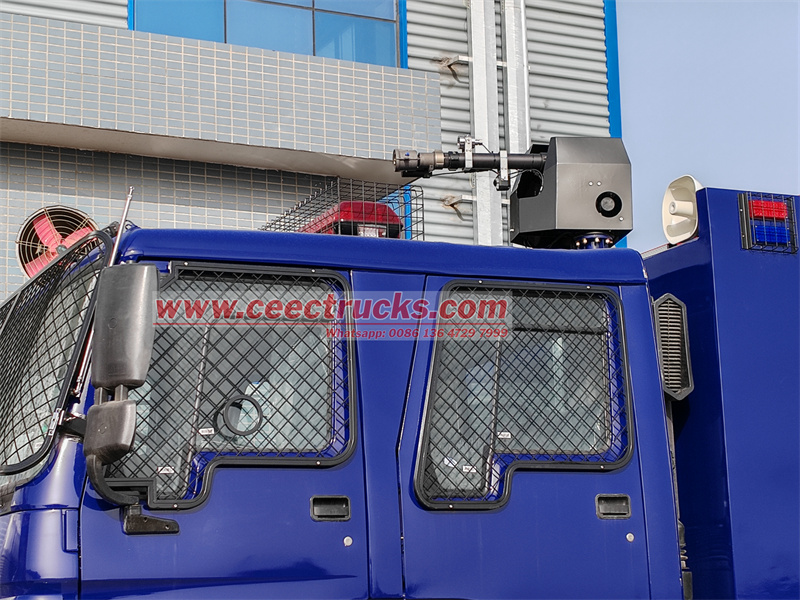

●Front auxiliary cannon:front electric remote control water cannon, flow rate 20L/s@0.8MPa, range≥50m, integrated laser ranging and AI target locking, can quickly suppress sudden threats within 50m.

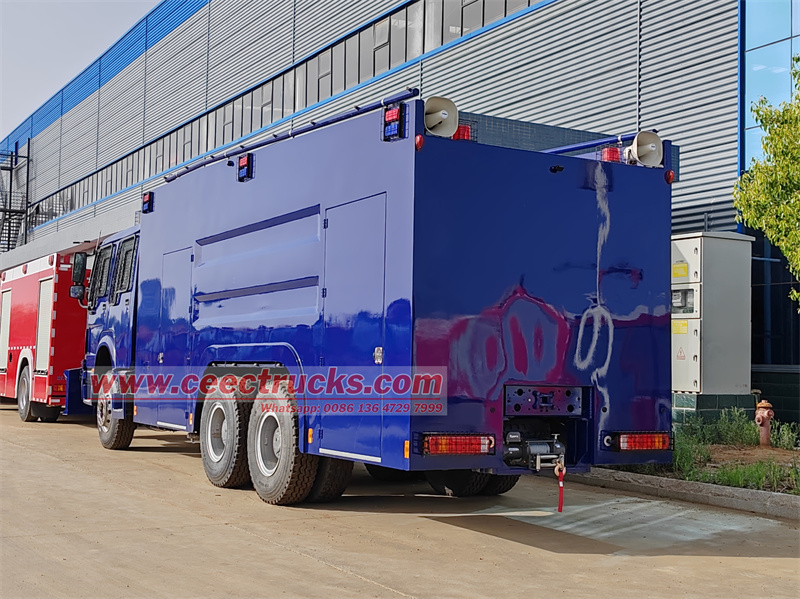

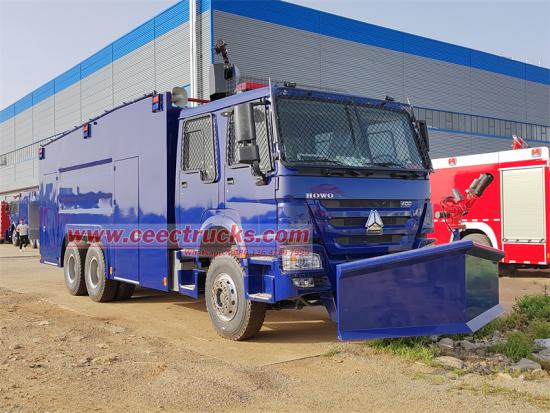

HOWO armored crowd control riot truck HOWO 6X4 Anti-Riot Vehicle

3. Fire extinguishing and obstacle removal module

● Full vehicle high pressure spray: 6 groups of high pressure foam nozzles are arranged on the roof and 4 groups of high pressure foam nozzles are arranged on the chassis, with a working pressure of 1.2MPa and a single nozzle flow rate of 15L/min, covering the fire extinguishing blind area ofthe whole vehicle within 30 seconds.

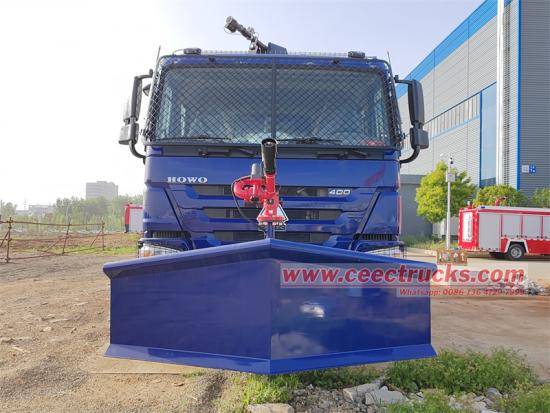

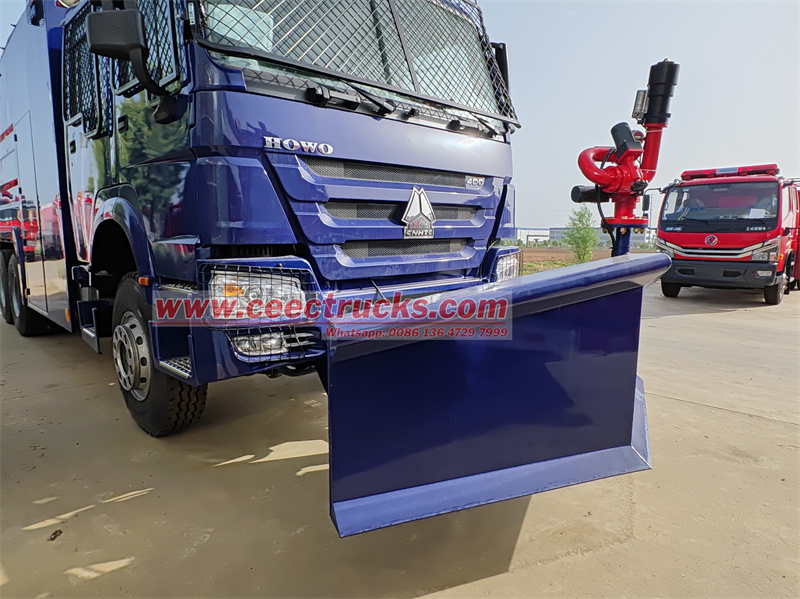

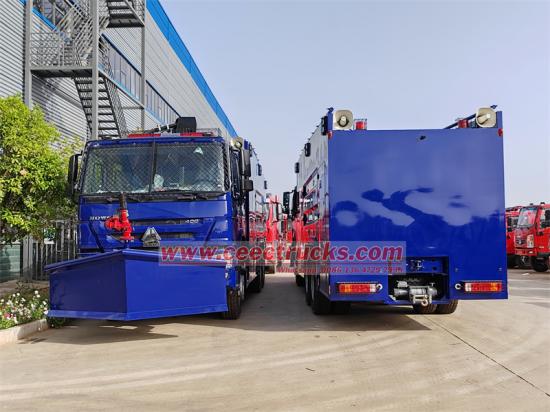

● Hydraulic obstacle removal system: A telescopic V-shaped shovel is installed on the front of the vehicle, with a hydraulic cylinder stroke of 1.2m and a thrust of 15 tons, which can remove roadblocks or push away obstructing vehicles; the surface of the shovel is covered with anti-skid patterns, supporting 180°lateral flipping to assist in catching.

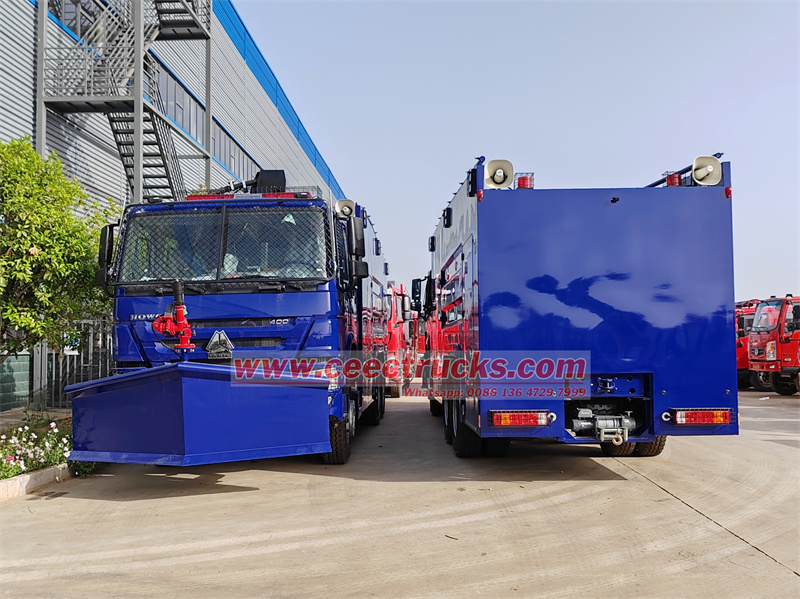

HOWO riot prevention vehicle

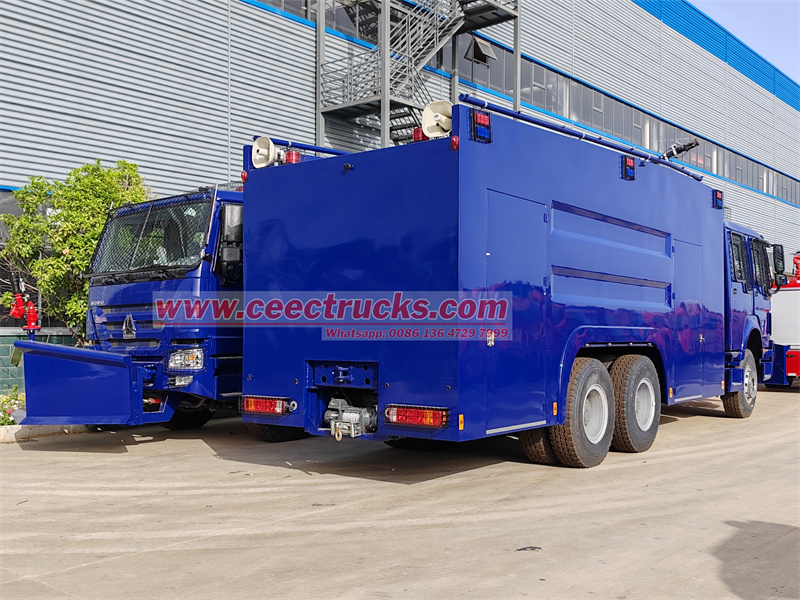

HOWO 6X4 explosion-proof waterwheel

★. All-round protection and intelligent combat system

1. Anti-riot structure design

● Smoothing of the whole vehicle: traditional raised parts are eliminated, the R angle of the roof line is≥50mm, the ground clearance of the side skirt is≤300mm, the surface is coated with anti-climbing nano-coating, and the friction coefficient is≤0.2.

● Anti-riot steel plate: The front of the vehicle is covered with 12mm thick high-manganese steel armor, with an impact energy resistance of≥200J, and the window glass uses 76mm bulletproof composite laminated glass (anti-79 type micro-impact).

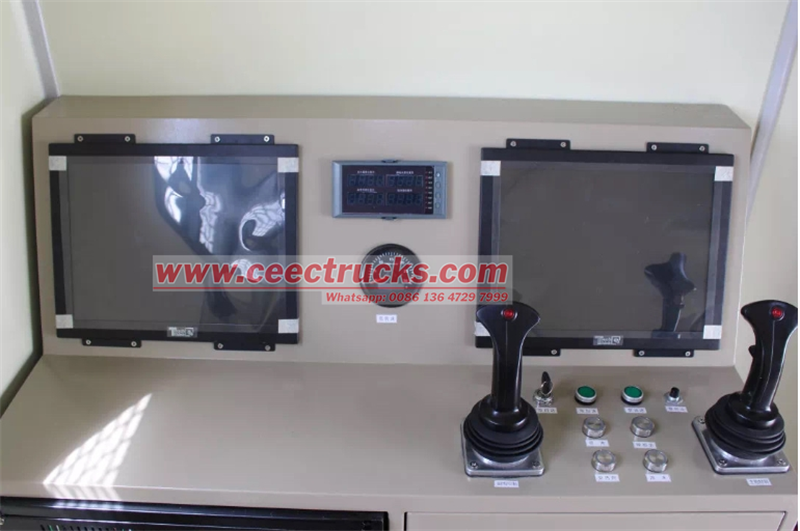

2. Intelligent control system

● PLC centralized control:

●Multimodal protection:

▪Antifreeze protection: The tank is wrapped with electric heating tape + polyurethane insulation layer, and the temperature rises from -40℃ to 5℃ in 4 hours;

▪Network protection: The on-board ECU uses a hardware-level encryption chip to prevent electromagnetic pulse interference;

▪Situational awareness: The entire vehicle is equipped with 8 360° panoramic cameras + 2 thermal imagers, and the data is transmitted back to the 15-inch touch screen in the cockpit in real time.

3. Tactical support system

≥3 heures.
